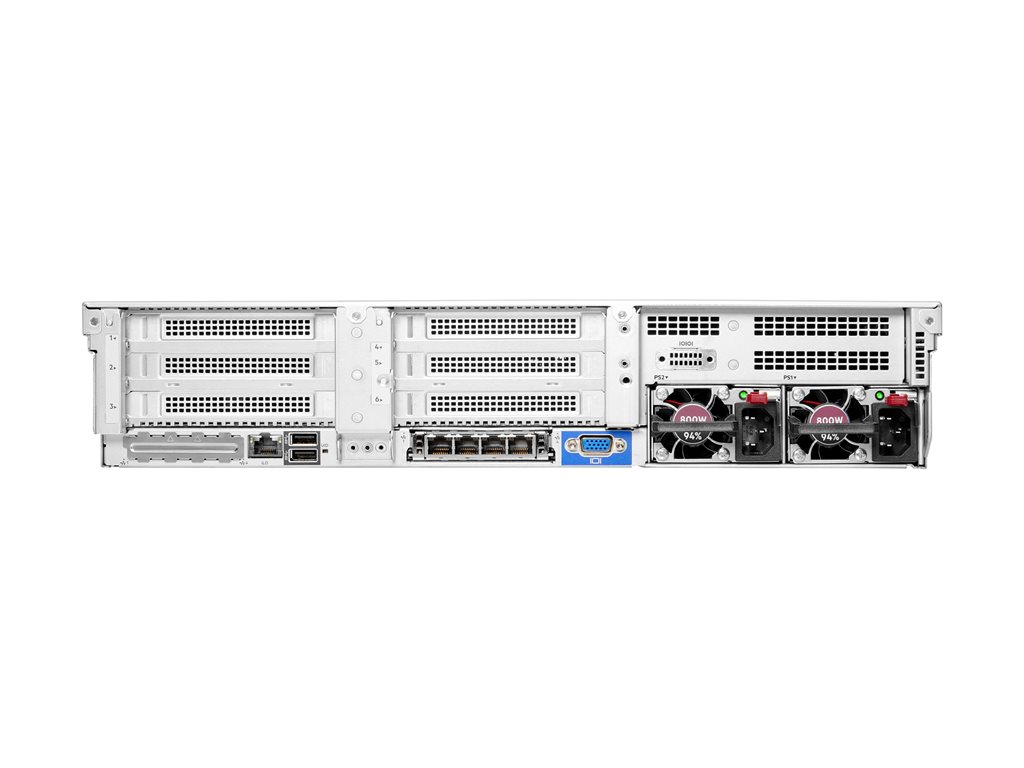

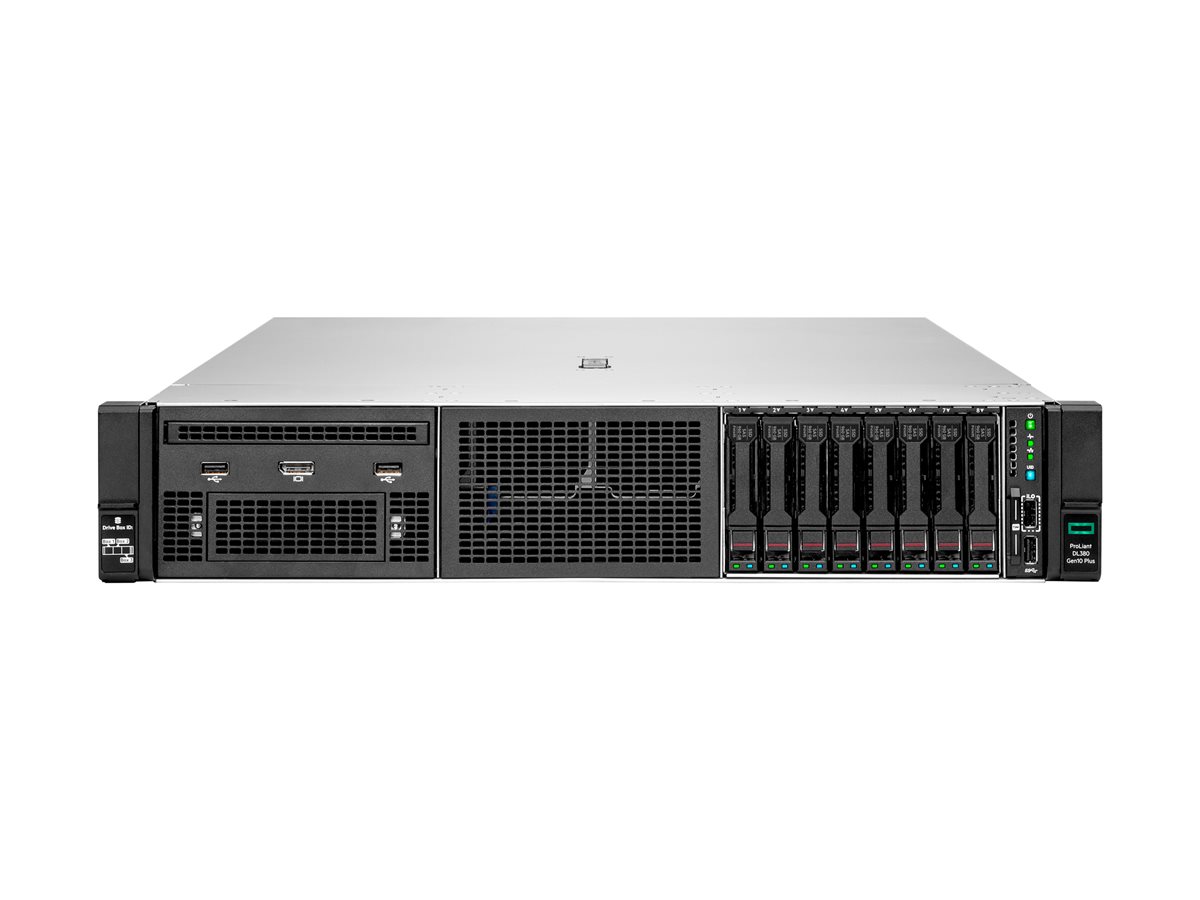

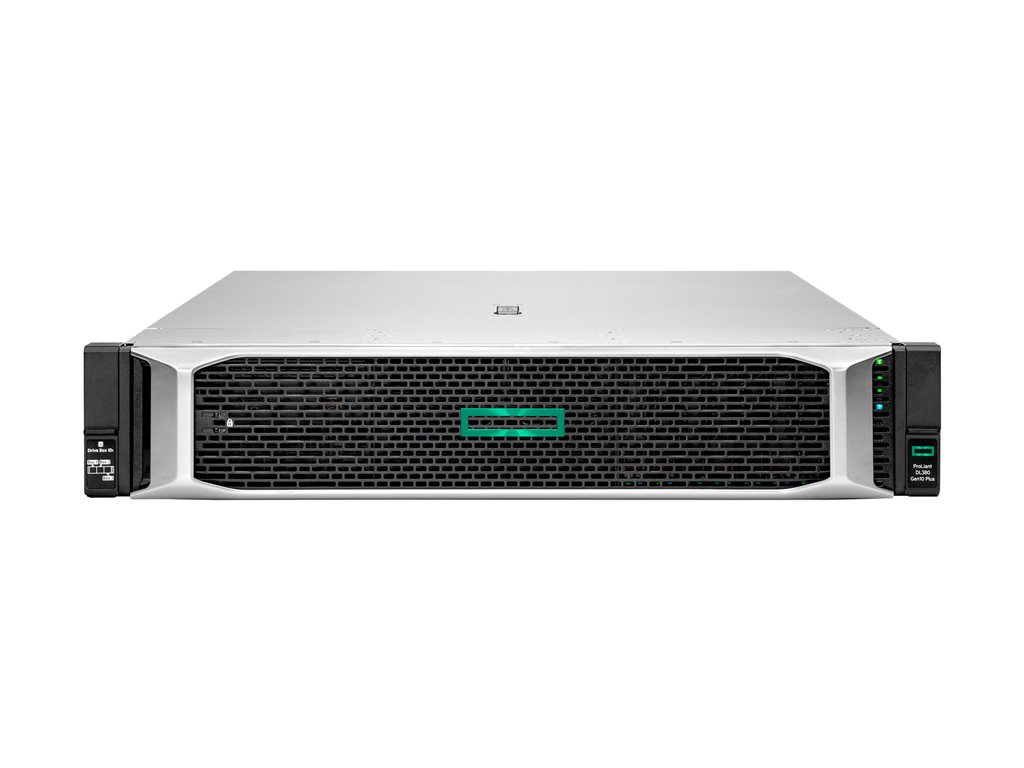

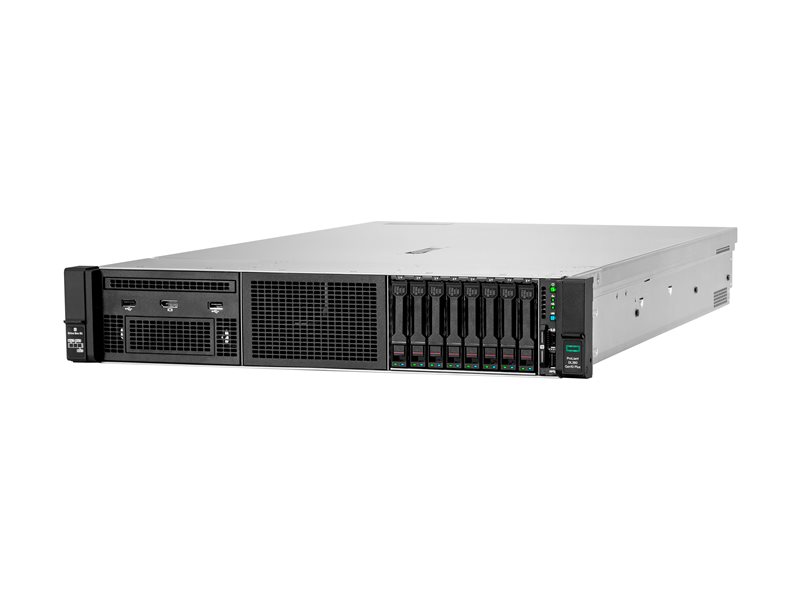

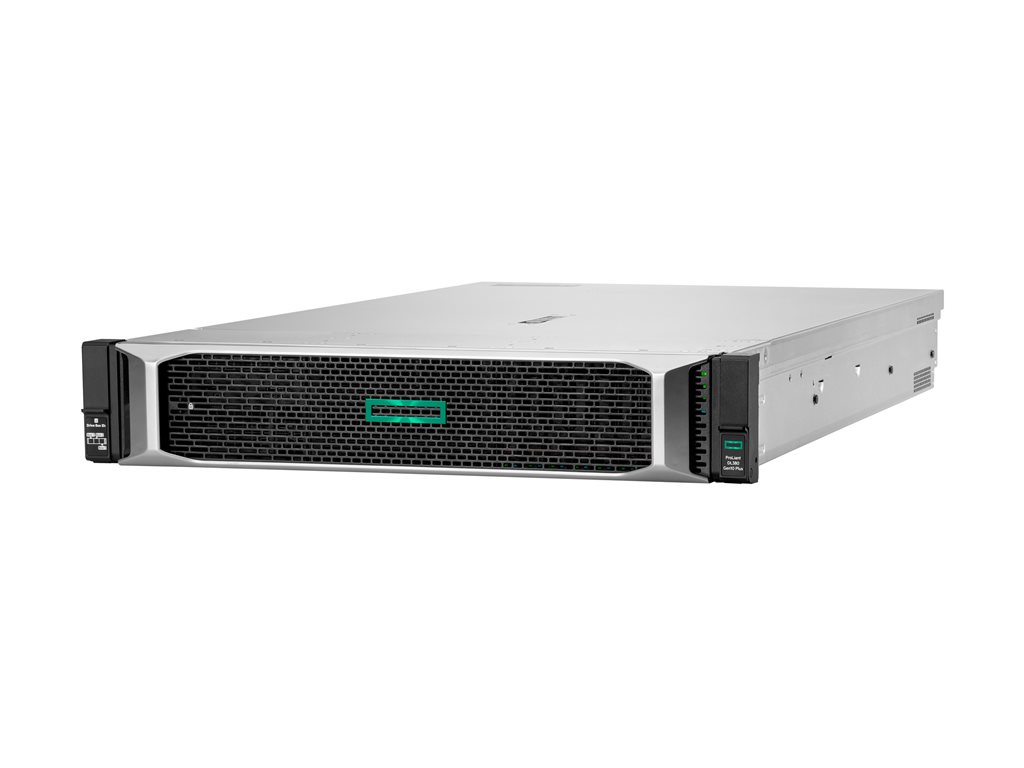

HPE ProLiant DL380 Gen10 Plus Network Choice
- Back to Results
Main Specifications
|
---|
Product Description
|
HPE ProLiant DL380 Gen10 Plus Network Choice - rack-mountable - Xeon Silver 4314 2.4 GHz - 128 GB - SSD 2 x 480 GB
|
Type
|
Server - rack-mountable
|
Height (Rack Units)
|
2U
|
Localization
|
Region: Canada, United States
|
Server Scalability
|
2-way
|
Processor
|
1 x Intel Xeon Silver 4314 / 2.4 GHz (, up to 3.4 GHz, (16-core)
|
Cache Memory
|
24 MB L3 cache
|
Cache Per Processor
|
24 MB
|
RAM
|
128 GB DDR4 SDRAM
|
Storage Controller
|
RAID (HPE MR416i-a Gen10)
|
Server Storage Bays
|
Hot-swap 2.5"
|
Hard Drive
|
2 x SSD 480 GB - SATA - 2.5"
|
Optical Storage
|
No optical drive
|
Video Memory
|
16 MB
|
Networking
|
10GbE
|
Power
|
(50/60 Hz)
|
Power Redundancy
|
Optional
|
Dimensions (WxDxH)
|
17.5 in x 28 in x 3.4 in
|
Weight
|
35.54 lbs
|
Manufacturer Selling Program
|
HPE Smart Choice
|
Environmental Standards
|
ENERGY STAR Qualified
|
Manufacturer Warranty
|
Limited warranty - parts and labor - 3 years - on-site
|
General
|
---|
Type
|
Server
|
Product Form Factor
|
Rack-mountable - 2U
|
Embedded Security
|
Trusted Platform Module (TPM) Security Chip
|
Server Scalability
|
2-way
|
Hot-Swap Bays Qty
|
8
|
Localization
|
Region: Canada, United States
|
Expansion / Connectivity
|
---|
Bays
|
8 (total) / 8 (free) x hot-swap 2.5" SFF
|
Slots
|
1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode)
|
Interfaces
|
1 x HPE iLO - RJ-45 ¦ 3 x USB 3.0 (1 front, 2 rear) ¦ 1 x HPE iLO (service port) ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x VGA
|
Manufacturer Warranty
|
---|
Service & Support
|
Limited warranty - parts and labor - 3 years - on-site
|
Miscellaneous
|
---|
Included Accessories
|
CPU standard heatsink, 6 maximum performance fans
|
Compliant Standards
|
AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2
|
Manufacturer Selling Program
|
HPE Smart Choice
|
RAM
|
---|
Installed Size
|
128 GB
|
Technology
|
DDR4 SDRAM
|
Effective Memory Speed
|
2667 MHz
|
Rated Memory Speed
|
3200 MHz
|
Form Factor
|
DIMM 288-pin
|
Slots
|
32 (total) / 28 (empty)
|
Features
|
Registered, 8-channel memory architecture, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
|
Configuration Features
|
4 x 32 GB
|
RAM Supported
|
8 TB Load-Reduced ¦ 2 TB registered ¦ 8 TB - HPE Persistent Memory - Optane DC Persistent
|
Networking
|
---|
Interface (Bus) Type
|
Open Compute Project mezzanine (OCP) 3.0
|
Ethernet Ports
|
2 x 10 Gigabit Ethernet
|
Ethernet Controller
|
Broadcom BCM57416
|
Data Link Protocol
|
10 Gigabit Ethernet
|
Remote Management Controller
|
Integrated Lights-Out 5
|
Power
|
---|
Device Type
|
Power supply - hot-plug
|
Power Redundancy
|
Optional
|
Power Redundancy Scheme
|
1+1 (with optional power supply)
|
Installed Qty
|
2
|
Max Supported Qty
|
2
|
Voltage Required
|
AC 100-240 V (50/60 Hz)
|
Power Provided
|
800 Watt
|
80 PLUS Certification
|
80 PLUS Platinum
|
Environmental Parameters
|
---|
Min Operating Temperature
|
50 °F
|
Max Operating Temperature
|
95 °F
|
Humidity Range Operating
|
8 - 90% (non-condensing)
|
Storage Controller
|
---|
Type
|
1 x RAID
|
Storage Controller Name
|
HPE MR416i-a Gen10
|
Buffer Size
|
4 GB
|
Cache Memory
|
---|
Installed Size
|
L3 cache - 24 MB
|
Cache Per Processor
|
24 MB
|
Optical Storage
|
---|
Type
|
No optical drive
|
Monitor
|
---|
Monitor Type
|
None.
|
Graphics Controller
|
---|
Video Memory
|
16 MB
|
Video Interfaces
|
VGA
|
Hard Drive
|
---|
Type
|
SSD - 2.5"
|
Capacity
|
2 x 480 GB
|
Interface Type
|
SATA
|
Dimensions & Weight
|
---|
Width
|
17.5 in
|
Depth
|
28 in
|
Height
|
3.4 in
|
Weight
|
35.54 lbs
|
Processor / Chipset
|
---|
CPU
|
Intel Xeon Silver 4314
|
Clock Speed
|
2.4 GHz
|
Max Turbo Speed
|
3.4 GHz
|
Number of Cores
|
16-core
|
CPU Qty
|
1
|
Max CPU Qty
|
2
|
CPU Upgradability
|
Upgradable
|
Chipset Type
|
Intel C621A
|
Sustainability Information
|
---|
ENERGY STAR Certified
|
Yes
|
ENERGY STAR Version
|
4.0
|
