HPE ProLiant DL20 Gen10 Plus High Performance
Back to Results
Main Specifications
Product Description

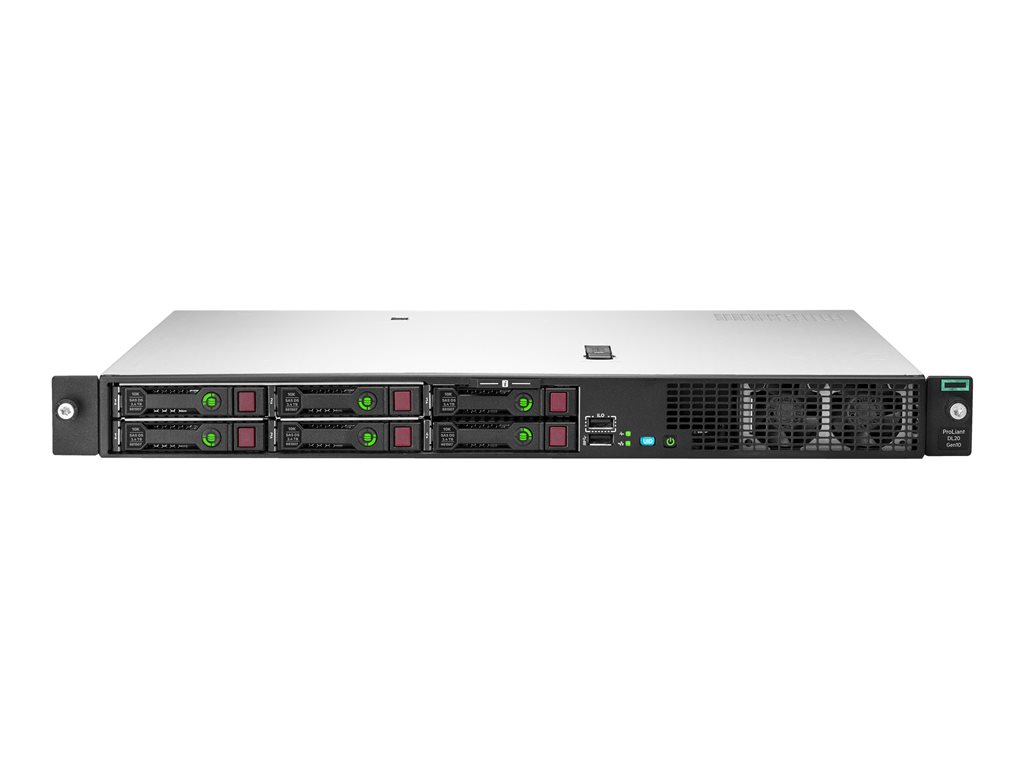

HPE ProLiant DL20 Gen10 Plus High Performance - rack-mountable - Xeon E-2336 2.9 GHz - 32 GB - SSD 2 x 480 GB
Type
Server - rack-mountable
Height (Rack Units)
1U
Localization
Region: Canada, United States
Server Scalability
1-way
Processor
1 x Intel Xeon E-2336 / 2.9 GHz (, up to 4.8 GHz, (6-core)
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
Cache Memory
12 MB L3 cache
Cache Per Processor
12 MB
RAM
32 GB (installed) / 128 GB (max) - DDR4 SDRAM - ECC
Storage Controller
SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID)
Server Storage Bays
Hot-swap 2.5"
Hard Drive
2 x SSD 480 GB - SATA 6Gb/s
Optical Storage
No optical drive
Graphics Controller
Matrox G200
Networking
1GbE
Power
(50/60 Hz)
Power Redundancy
Yes
OS Provided
No operating system
Software Included
HPE Intelligent Provisioning, HPE iLO Management
Dimensions (WxDxH)
17.1 in x 15 in x 1.7 in
Weight
22.05 lbs
Manufacturer Selling Program
HPE Smart Choice
Environmental Standards
ENERGY STAR Qualified
Manufacturer Warranty
Limited warranty - parts and labor - 3 years - on-site - response time: next business day
General
Type
Server
Product Form Factor
Rack-mountable - 1U
Built-in Devices
LED panel
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability
1-way
Hot-Swap Bays Qty
4
Localization
Region: Canada, United States
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external 5.25" ¦ 4 (total) / 2 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - low-profile (x8 mode)
Interfaces
1 x VGA ¦ 1 x HPE iLO - Type A (1 front) (service port) ¦ 1 x HPE iLO - RJ-45 (1 rear) (management port) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) / HPE iLO - RJ-45 ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)
Manufacturer Warranty
Service & Support
Limited warranty - parts and labor - 3 years - on-site - response time: next business day
Miscellaneous
Included Accessories
HPE Short Friction Rail kit, 3 non-hot plug non-redundant fans
Compliant Standards
AES, FIPS 140-2, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, ACPI 6.3, SMBIOS 3.2, UEFI 2.6
Manufacturer Selling Program
HPE Smart Choice
RAM
Installed Size
32 GB / 128 GB (max)
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
3200 MHz
Rated Memory Speed
3200 MHz
Form Factor
DIMM 288-pin
Slots
4 (total) / 2 (empty)
Features
Unbuffered, dual channel memory architecture
Configuration Features
2 x 16 GB
Networking
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Broadcom BCM5720
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Power
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 100-120/200-240 V (50/60 Hz)
Power Provided
500 Watt
80 PLUS Certification
80 PLUS Platinum
Efficiency
94%
Environmental Parameters
Min Operating Temperature
50 °F
Max Operating Temperature
95 °F
Humidity Range Operating
8 - 90% (non-condensing)
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
Intel VROC SATA Software RAID
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10
Cache Memory
Installed Size
L3 cache - 12 MB
Cache Per Processor
12 MB
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Matrox G200
Video Interfaces
VGA
Operating System / Software
OS Provided
No operating system
Software
HPE Intelligent Provisioning, HPE iLO Management
Hard Drive
Type
SSD
Capacity
2 x 480 GB
Interface Type
SATA 6Gb/s
Dimensions & Weight
Width
17.1 in
Depth
15 in
Height
1.7 in
Weight
22.05 lbs
Processor / Chipset
CPU
Intel Xeon E-2336
Clock Speed
2.9 GHz
Max Turbo Speed
4.8 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
Chipset Type
Intel C256
Sustainability Information
ENERGY STAR Certified
Yes
