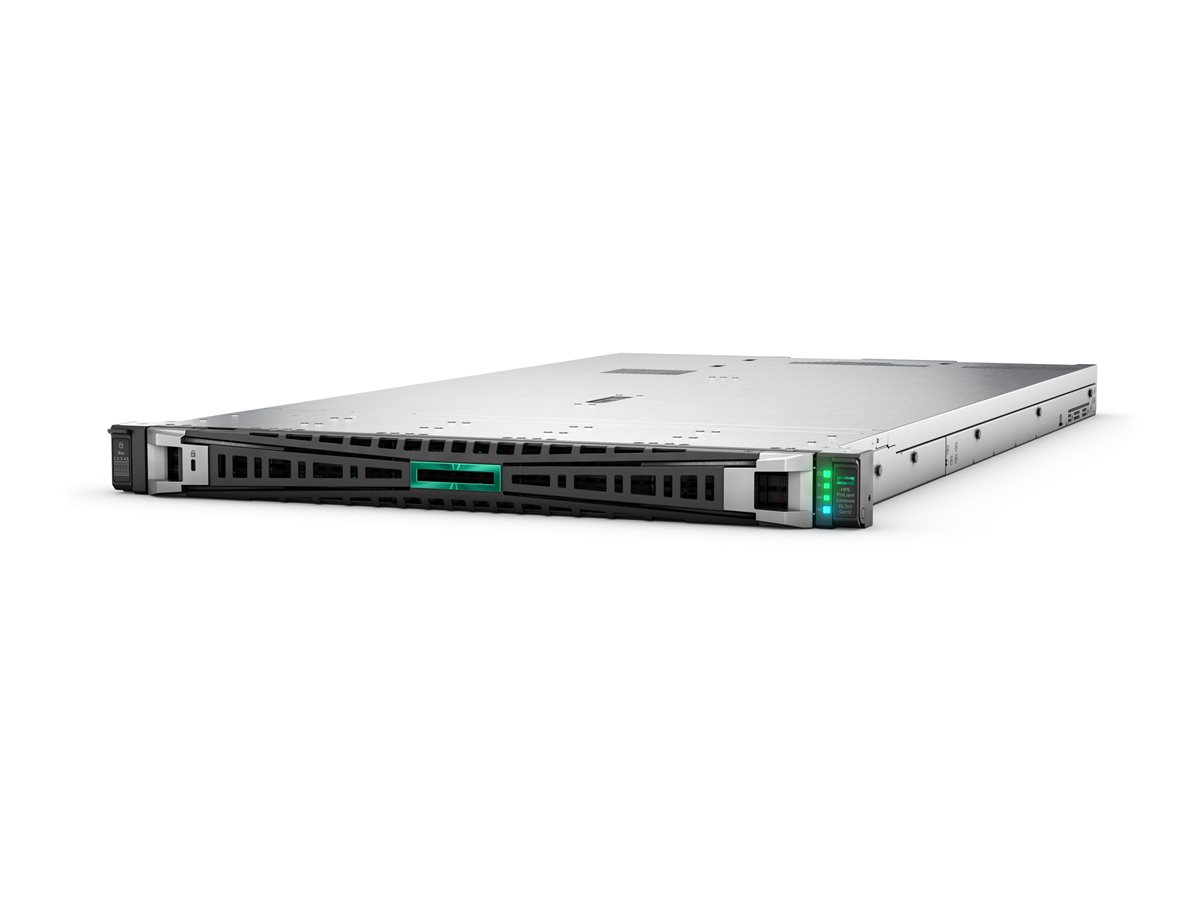

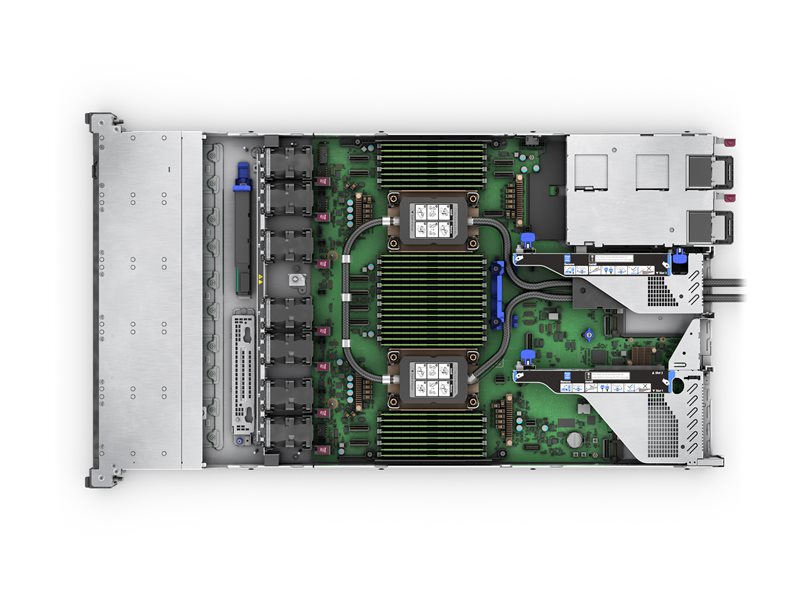

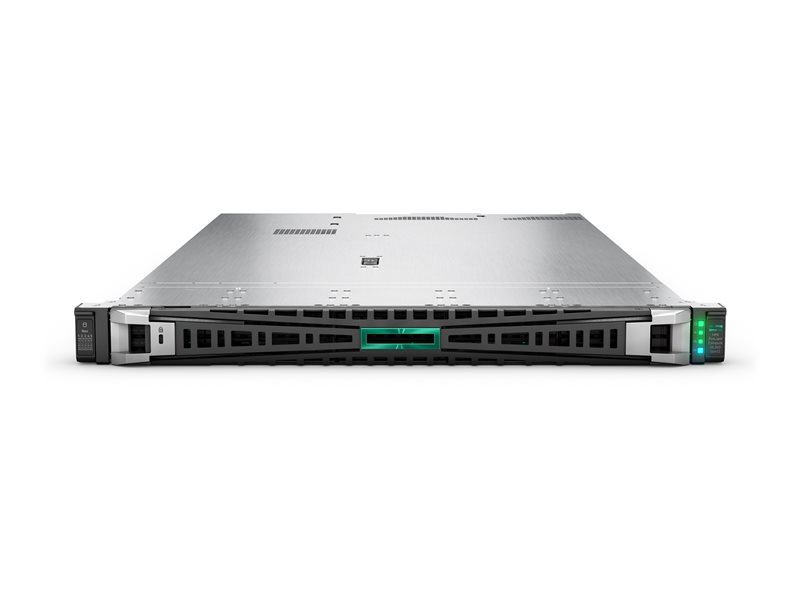

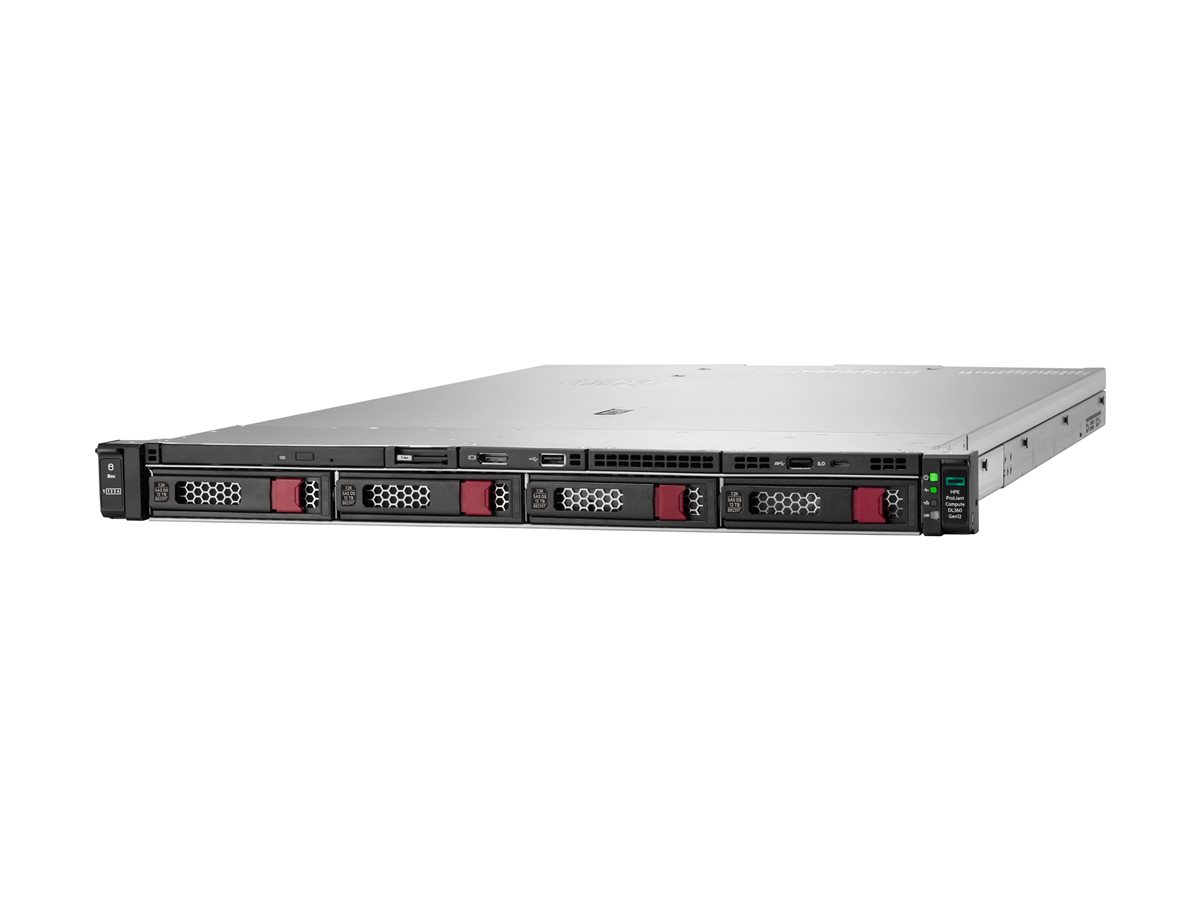

Hewlett Packard Enterprise - HPE ProLiant Compute DL360 Gen12
Server - rack-mountable 1U - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - hot-swap 3.5" bay(s) - HDD 2 x 8 TB - no OS - monitor: none
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant Compute DL360 Gen12 - rack-mountable Xeon 6505P 2.2 GHz - 64 GB - HDD 2 x 8 TB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: North America |
| Processor | 1 x Intel Xeon 6505P / 2.2 GHz (up to 4.1 GHz, (12-core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 24 Threads, 150W TDP |
| Cache Memory | 48 MB L3 cache |
| Cache Per Processor | 48 MB |
| RAM | 64 GB (installed) / 256 GB (max) - DDR5 SDRAM |
| Storage Controller | RAID OCP 3.0 (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | 2 x HDD 8 TB |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE OneView Advanced |
| Dimensions (WxDxH) | 17.1 in x 30.4 in x 1.7 in |
| Weight | 33.62 lbs |
| Environmental Standards | ENERGY STAR Qualified EPEAT Silver |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 4 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 4 (total) / 2 (free) x hot-swap 3.5" LFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-height, 9.5" length (x16 mode) ¦ 2 (total) / 2 (free) x PCIe 5.0 x16 - half-height (x16 mode) ¦ 2 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces | 1 x HPE iLO - Type C (1 in front) (service port) ¦ 1 x management (Gigabit Ethernet) - RJ-45 (1 front) (HPE iLO Service Port) ¦ 5 x USB 3.2 Gen 1 - Type A (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | AES, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, UEFI, ErP Lot 9, PCIe 5.0, DMTF, Active Directory v1.0, UEFI Class 3, ACPI 6.5, SMBIOS 3.7, UEFI 2.10 |
| RAM | |
| Installed Size | 64 GB (installed) / 256 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 6400 MT/s |
| Rated Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 30 (empty) |
| Features | Registered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 2 x 32 GB |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 800 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP 3.0 |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 48 MB |
| Cache Per Processor | 48 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE OneView Advanced |
| Hard Drive | |
| Type | HDD |
| Capacity | 2 x 8 TB |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 30.4 in |
| Height | 1.7 in |
| Weight | 33.62 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon 6505P |
| Clock Speed | 2.2 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 24 Threads, 150W TDP |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Silver |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
