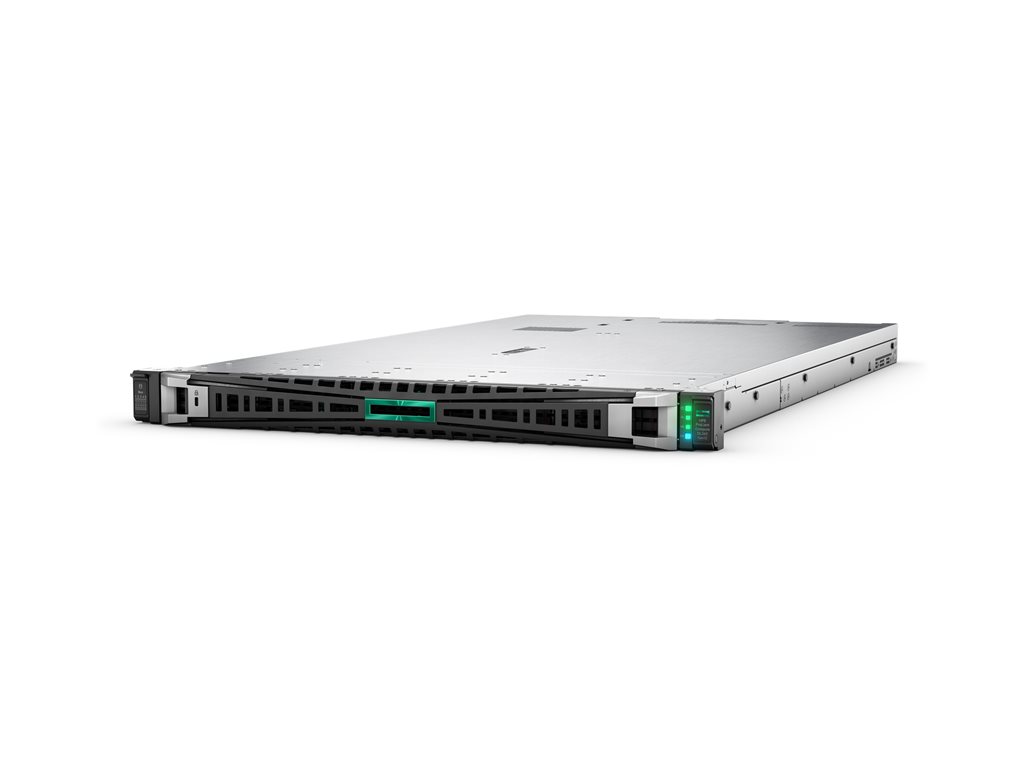

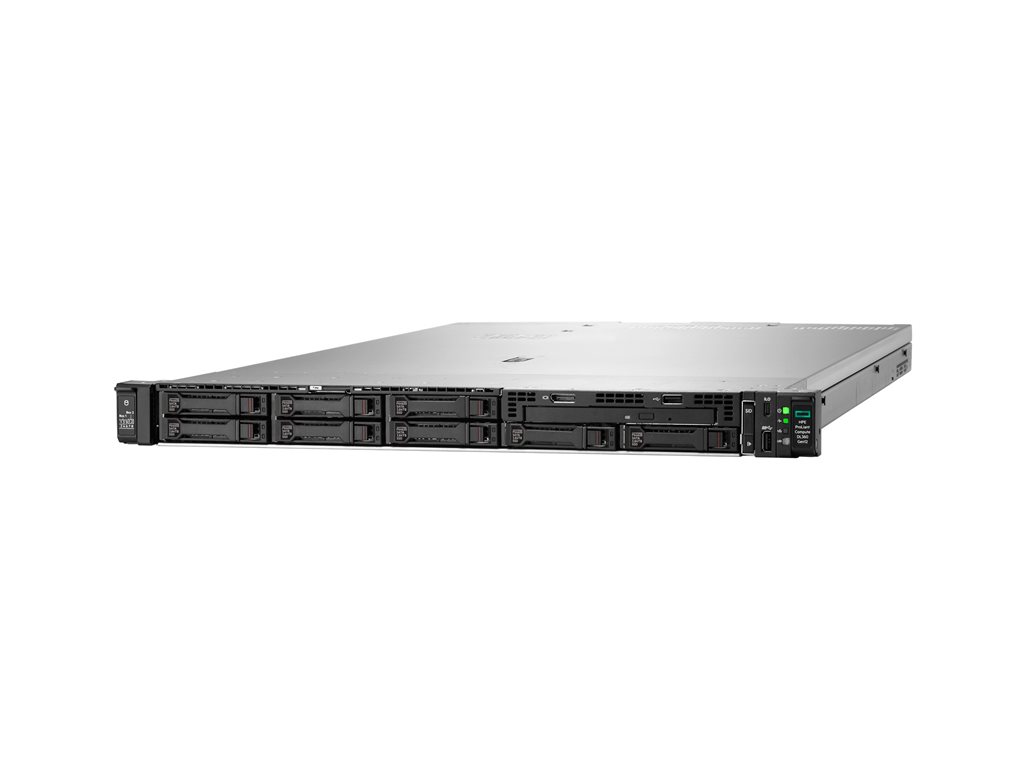

Hewlett Packard Enterprise - HPE ProLiant Compute DL360 Gen12
Server - rack-mountable 1U - 2-way - 1 x Xeon 6517P / up to 4.2 GHz - RAM 64 GB - hot-swap 2.5" bay(s) - no HDD - no OS - monitor: none
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant Compute DL360 Gen12 - rack-mountable Xeon 6517P 3.2 GHz - 64 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: North America |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon (6th Gen) 6517P / 3.2 GHz (up to 4.2 GHz, (16-core) |
| Processor Main Features | 32 Threads, 190W TDP |
| Cache Memory | 72 MB |
| Cache Per Processor | 72 MB |
| RAM | 64 GB DDR5 SDRAM |
| Storage Controller | (Intel VROC NVMe Software RAID) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.1 in x 30.4 in x 1.7 in |
| Environmental Standards | EPEAT Silver |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 10 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 10 (total) / 10 (free) x hot-swap 2.5" SFF / 2 x EDSFF shared |
| Slots | 3 (total) / 3 (free) x PCIe 5.0 x16 ¦ 2 (total) / 2 (free) x Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces | 1 x HPE iLO - Type C (1 in front) (service port) ¦ 1 x management (Gigabit Ethernet) - RJ-45 (1 front) (HPE iLO Service Port) ¦ 5 x USB 3.2 Gen 1 - Type A (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, ErP Lot 9, Energy Star, ACPI 6.4, SMBIOS 3.4, Active Directory v1.0 |
| RAM | |
| Installed Size | 64 GB |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 6400 MT/s |
| Rated Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 30 (empty) |
| Features | Registered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Remote Management Controller | Integrated Lights-Out 7 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1000 watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 |
| Storage Controller Name | Intel VROC NVMe Software RAID |
| Cache Memory | |
| Installed Size | 72 MB |
| Cache Per Processor | 72 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 30.4 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | Intel Xeon (6th Gen) 6517P |
| Clock Speed | 3.2 GHz |
| Max Turbo Speed | 4.2 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Processor Main Features | 32 Threads, 190W TDP |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Silver |
