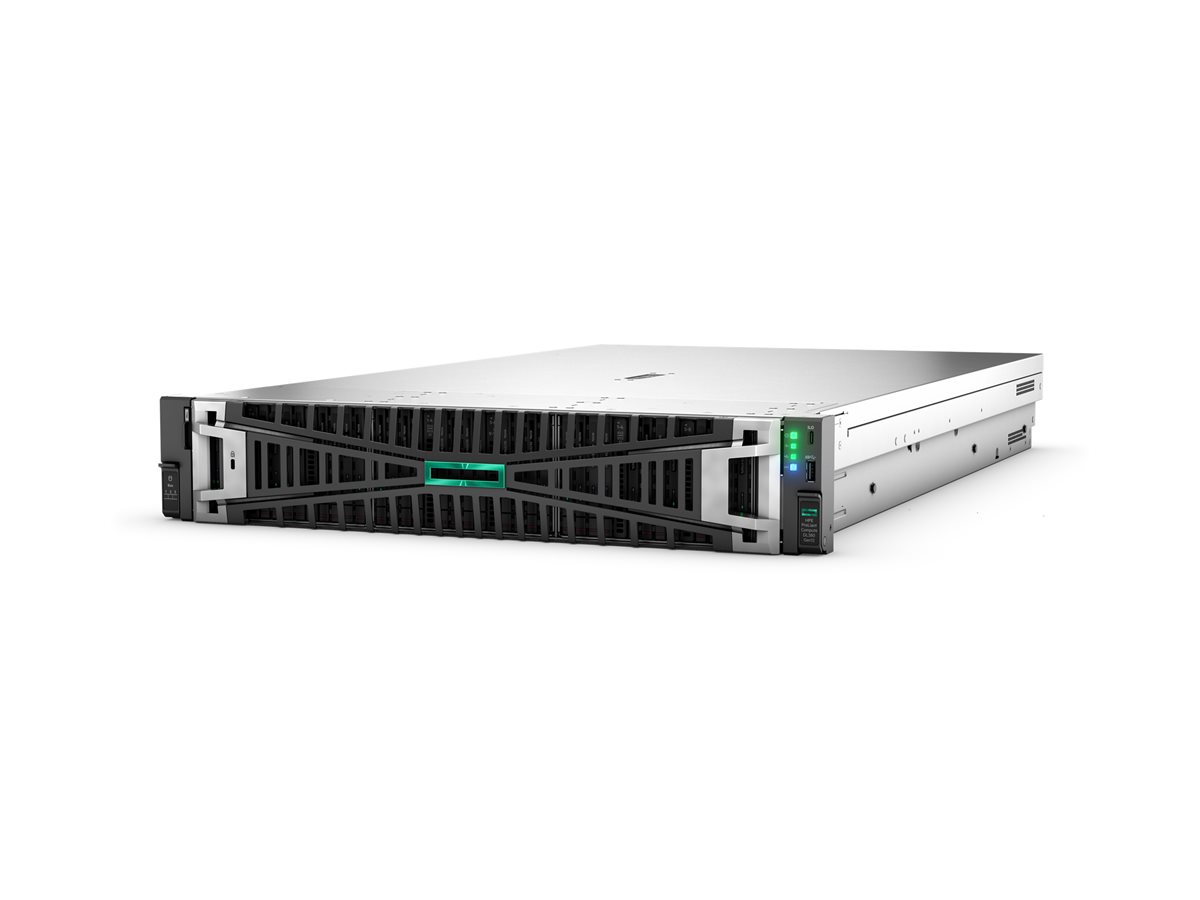

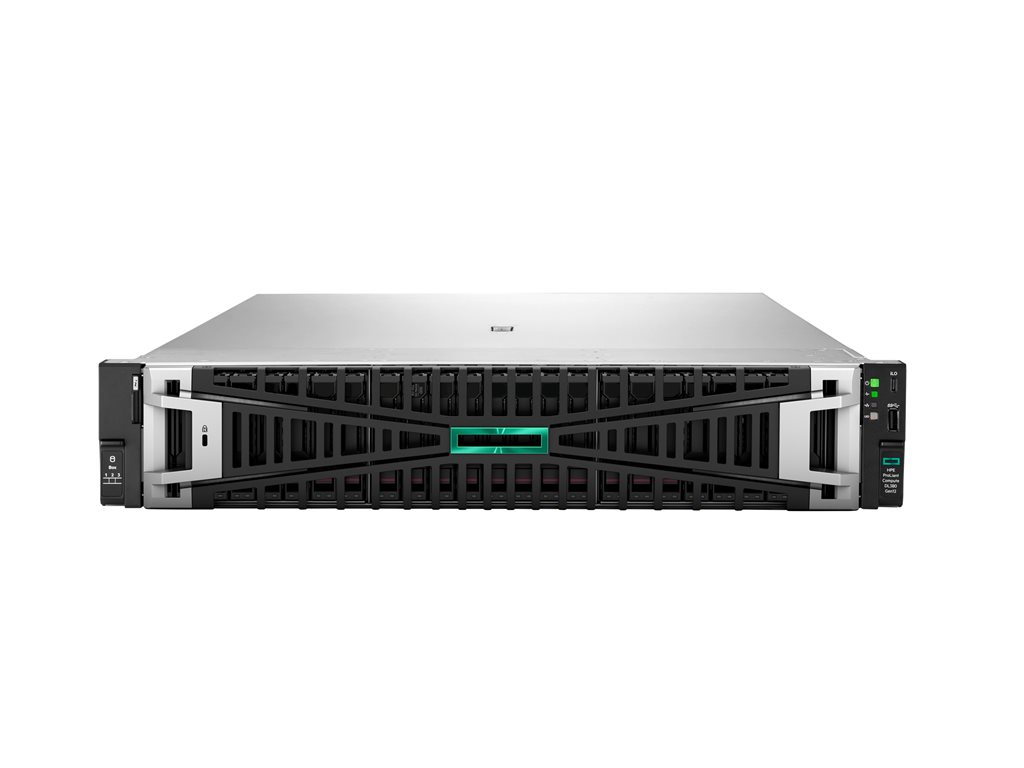

Hewlett Packard Enterprise - HPE ProLiant Compute DL380 Gen12
Server - rack-mountable 2U - 1-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - no OS - monitor: none
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant Compute DL380 Gen12 - rack-mountable Xeon 6505P 2.2 GHz - 64 GB - SSD 2 x 480 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | Region: North America |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon (6th Gen) 6505P / 2.2 GHz (up to 4.1 GHz, (12-core) |
| Processor Main Features | 24 Threads, 150W TDP |
| Cache Memory | 48 MB L3 cache |
| Cache Per Processor | 48 MB |
| RAM | 64 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 480 GB |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Software Included | HPE Server UEFI, HPE iLO Standard with Intelligent Provisioning |
| Dimensions (WxDxH) | 17.6 in x 28.6 in x 3.4 in |
| Weight | 39.68 lbs |
| Environmental Standards | EPEAT Silver |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 12 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces | 1 x USB-C (1 in front) (HPE iLO Service Port) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 2 x USB 3.0 (2 internal) ¦ 1 x HPE iLO - RJ-45 (1 rear) (management port) ¦ 1 x VGA (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 4 standard fans |
| Compliant Standards | TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, Active Directory v1.0, UEFI Class 3, APML, ACPI 6.5, SMBIOS 3.7, UEFI 2.10 |
| RAM | |
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 6400 MT/s |
| Rated Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 30 (empty) |
| Features | HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Remote Management Controller | Integrated Lights-Out 7 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 800 watt |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Cache Memory | |
| Installed Size | L3 cache - 48 MB |
| Cache Per Processor | 48 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE Server UEFI, HPE iLO Standard with Intelligent Provisioning |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 480 GB |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 28.6 in |
| Height | 3.4 in |
| Weight | 39.68 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon (6th Gen) 6505P |
| Clock Speed | 2.2 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | 24 Threads, 150W TDP |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Silver |
