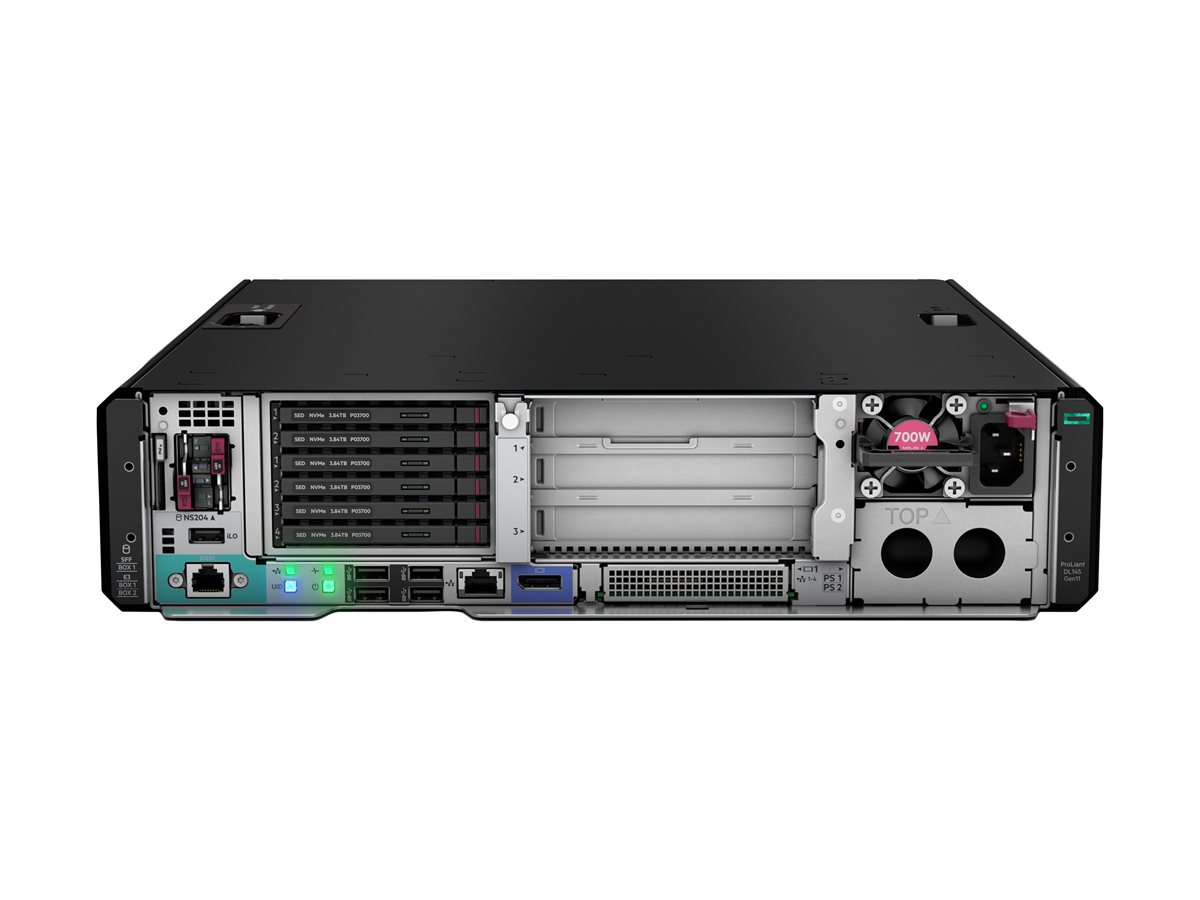

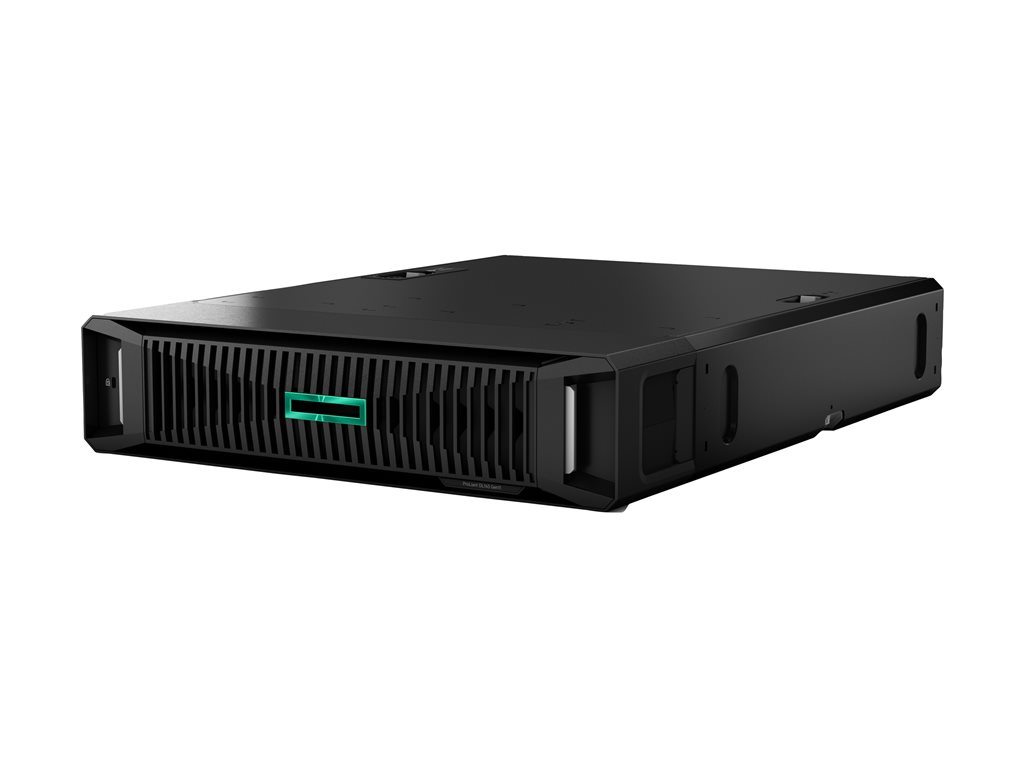

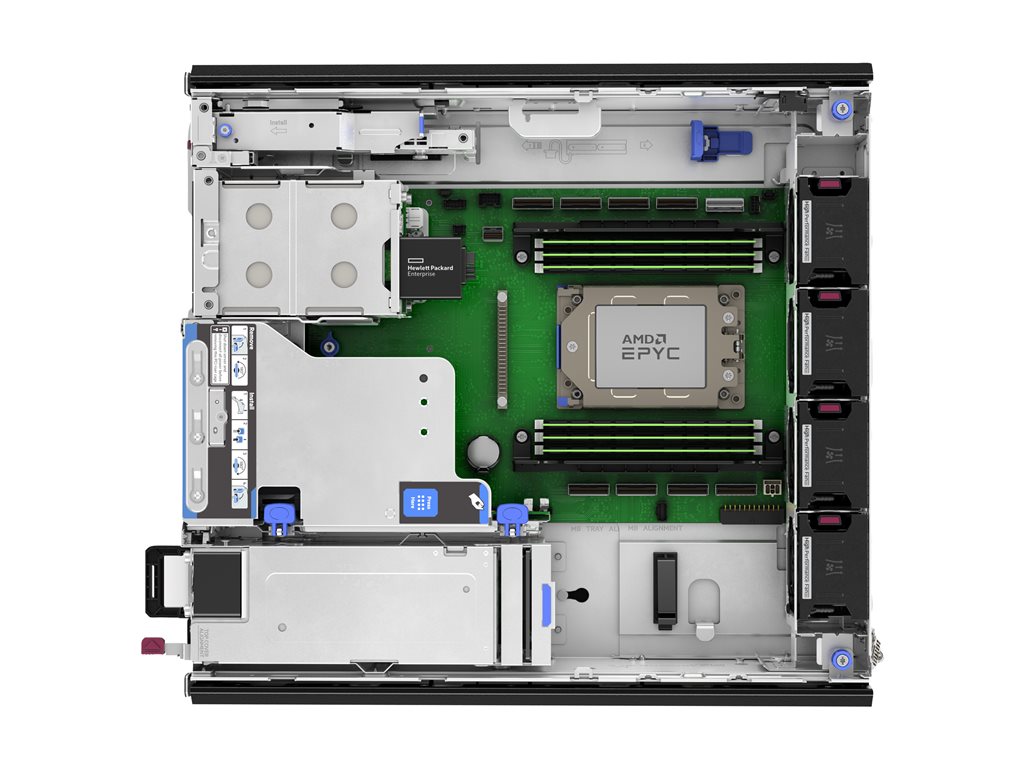

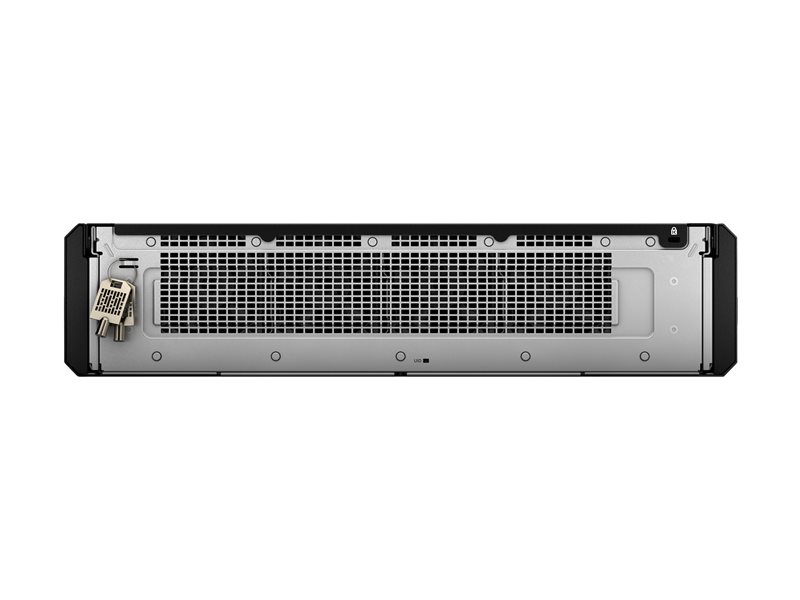

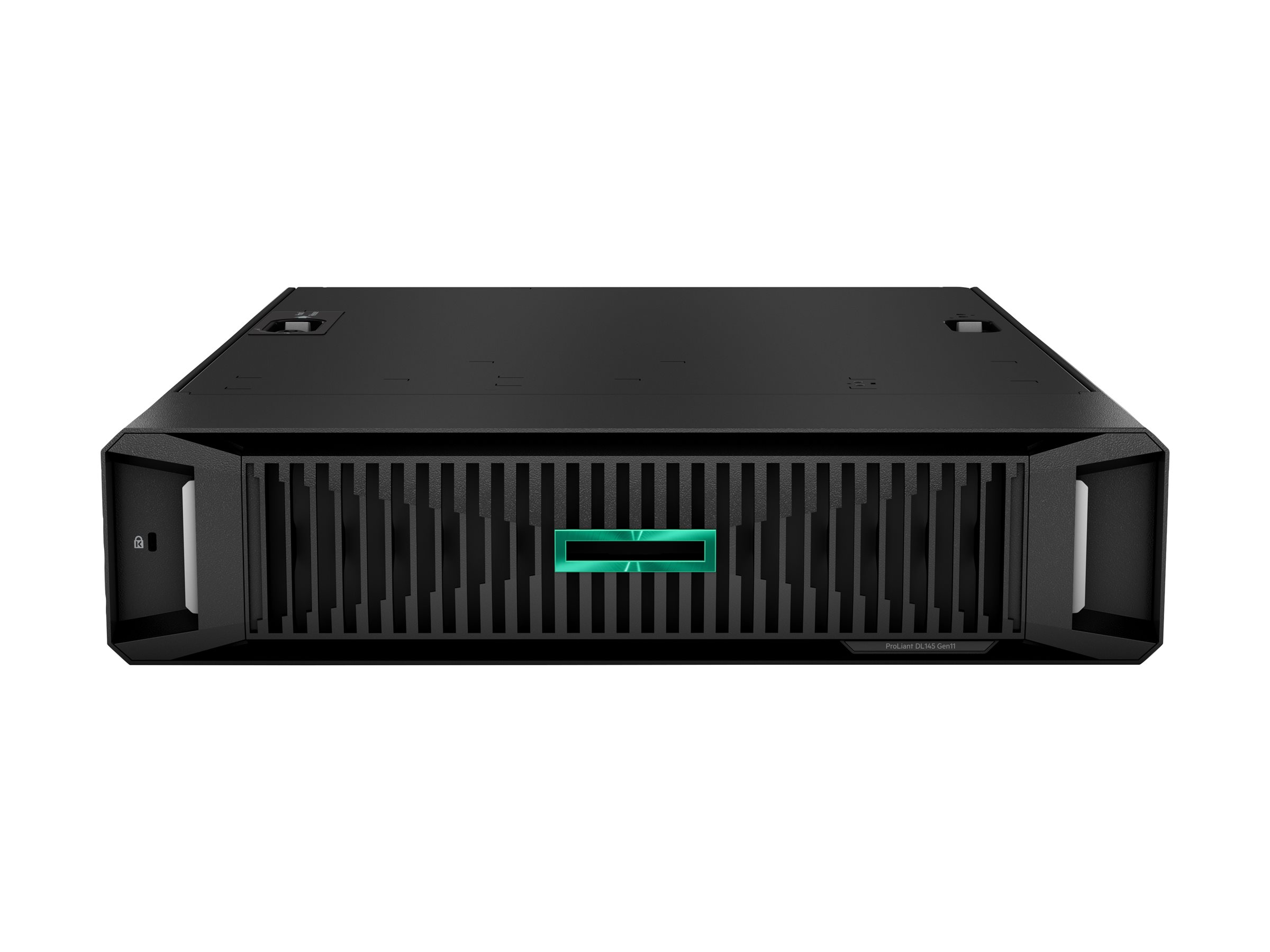

Hewlett Packard Enterprise - HPE ProLiant DL145 Gen11
Server - rack-mountable 2U - 1-way - 1 x EPYC 8024P / up to 3 GHz - RAM 16 GB - hot-swap 2.5" bay(s) - SSD 480 GB - Gigabit Ethernet - no OS - monitor: none - HP Smart Choice
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL145 Gen11 - rack-mountable EPYC 8024P 2.4 GHz - 16 GB - SSD 480 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | Region: North America |
| Server Scalability | 1-way |
| Processor | 1 x AMD EPYC 8024P / 2.4 GHz (up to 3 GHz, (8-core) |
| Processor Main Features | 16 Threads |
| Cache Memory | 32 MB L3 cache |
| Cache Per Processor | 32 MB |
| RAM | 16 GB (installed) / 768 GB (max) - DDR5 SDRAM - Advanced ECC |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | SSD 480 GB |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition |
| Dimensions (WxDxH) | 15.1 in x 20 in x 3.4 in |
| Weight | 26.04 lbs |
| Manufacturer Selling Program | HP Smart Choice |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Front Accessible Bays Qty | 2 |
| Hot-Swap Bays Qty | 2 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Slots | 2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height ¦ 1 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces | 1 x HPE iLO (1 front) (service port) ¦ 1 x HPE iLO - RJ-45 (1 front) (management port) ¦ 4 x USB 3.2 Gen 1 (4 front) ¦ 1 x DisplayPort ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 4 standard fans |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ACPI 6.1, PCIe 5.0, SMBIOS 3.1, UEFI 2.7, UEFI Class 3, Redfish API, AES, Triple DES, TLS v1.2, DMTF, Active Directory v1.0, UEFI, APML 1.0, ASHRAE Class A3, ASHRAE Class A4, UL 62368-1, FIPS 140-3, low halogen, NEBS, WEEE 2002/95/EC, IPv6 Ready, PCI DSS |
| Manufacturer Selling Program | HP Smart Choice |
| RAM | |
| Installed Size | 16 GB (installed) / 768 GB (max) |
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 4800 MT/s |
| Rated Memory Speed | 4800 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 6 (total) / 5 (empty) |
| Features | HPE SmartMemory, registered |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 6 |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 700 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Cache Memory | |
| Installed Size | L3 cache - 32 MB |
| Cache Per Processor | 32 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 480 GB |
| Dimensions & Weight | |
| Width | 15.1 in |
| Depth | 20 in |
| Height | 3.4 in |
| Weight | 26.04 lbs |
| Processor / Chipset | |
| CPU | AMD EPYC 8024P |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | 16 Threads |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
