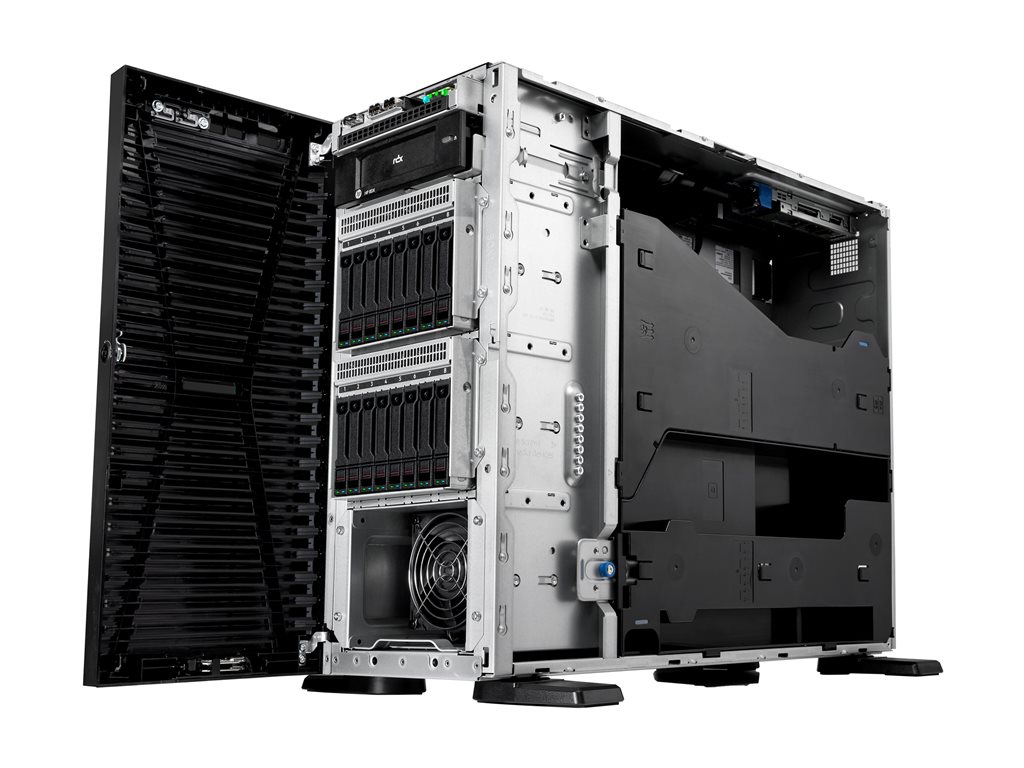

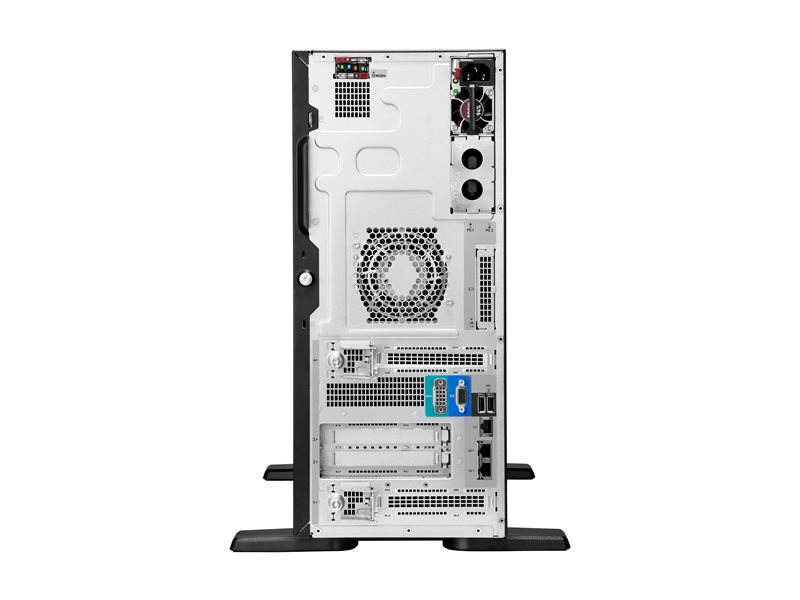

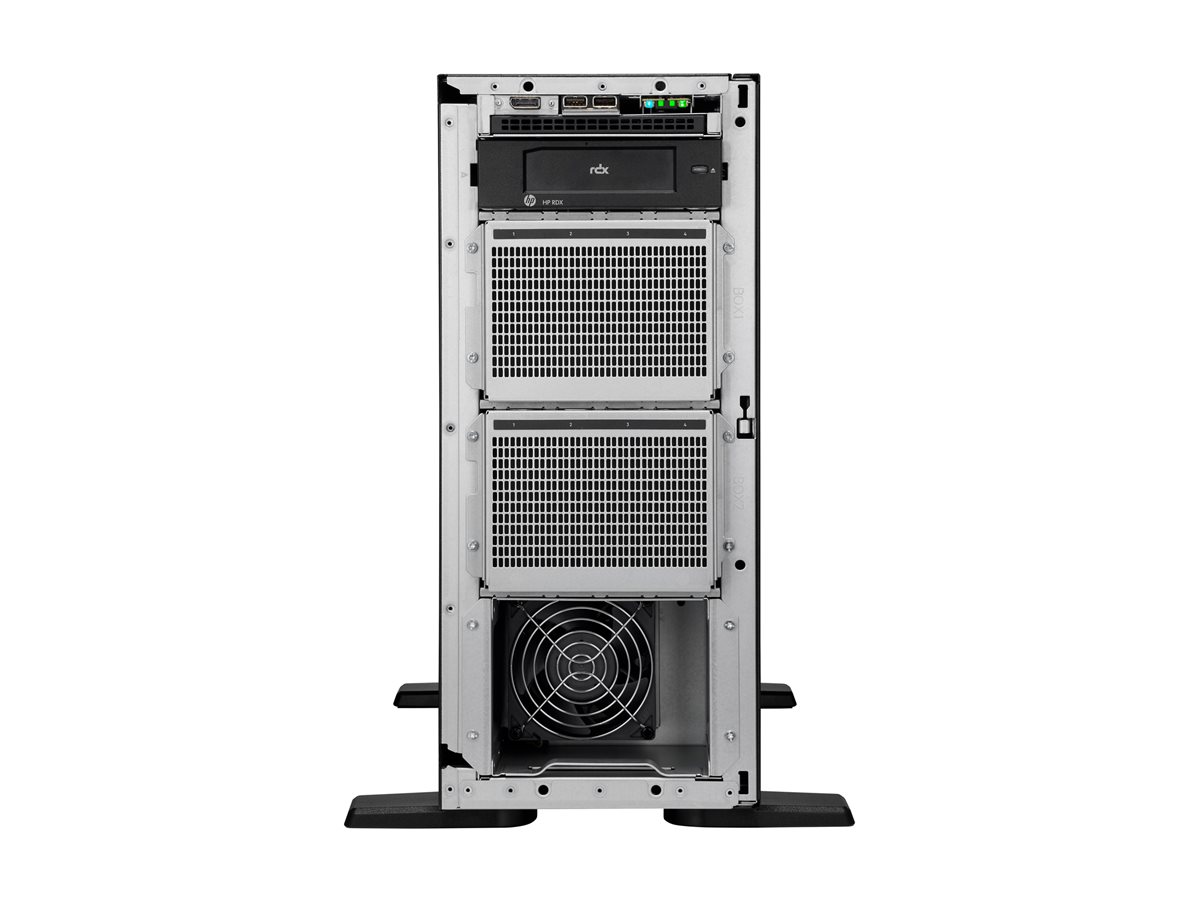

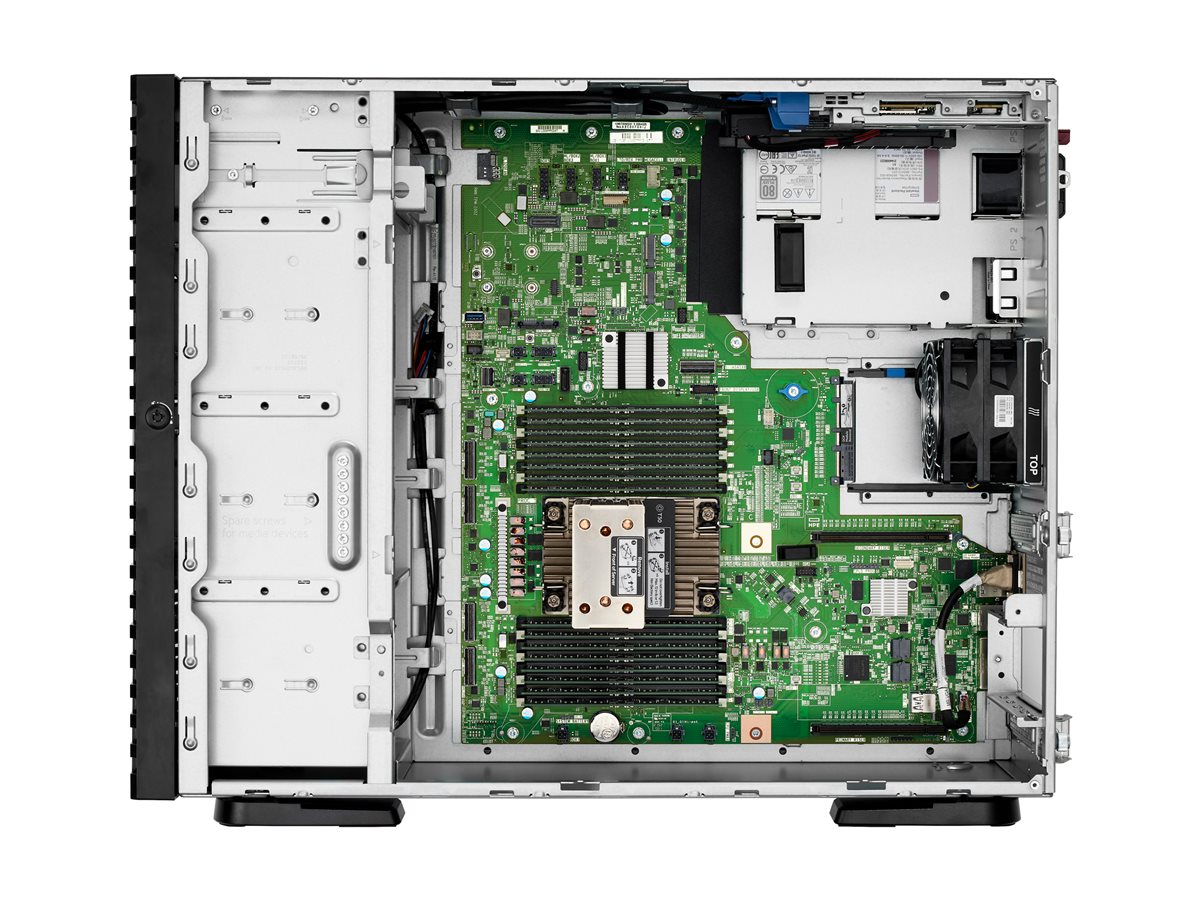

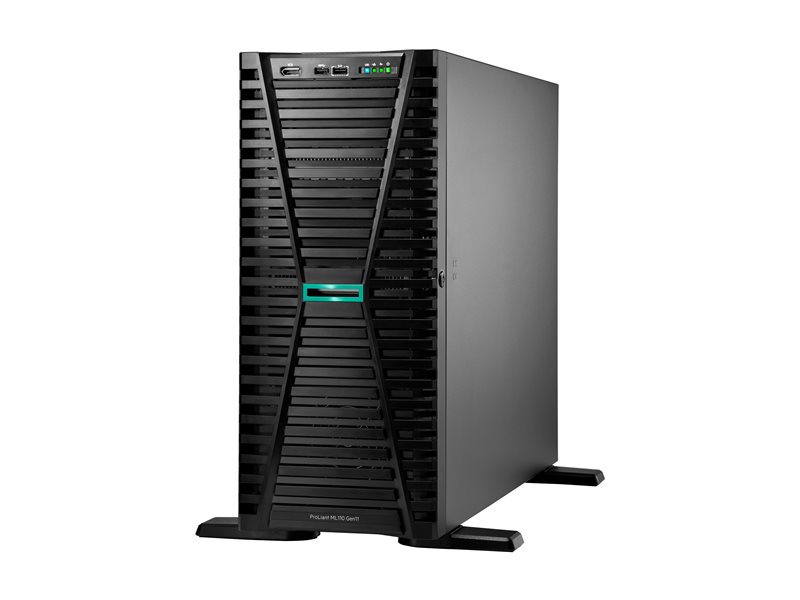

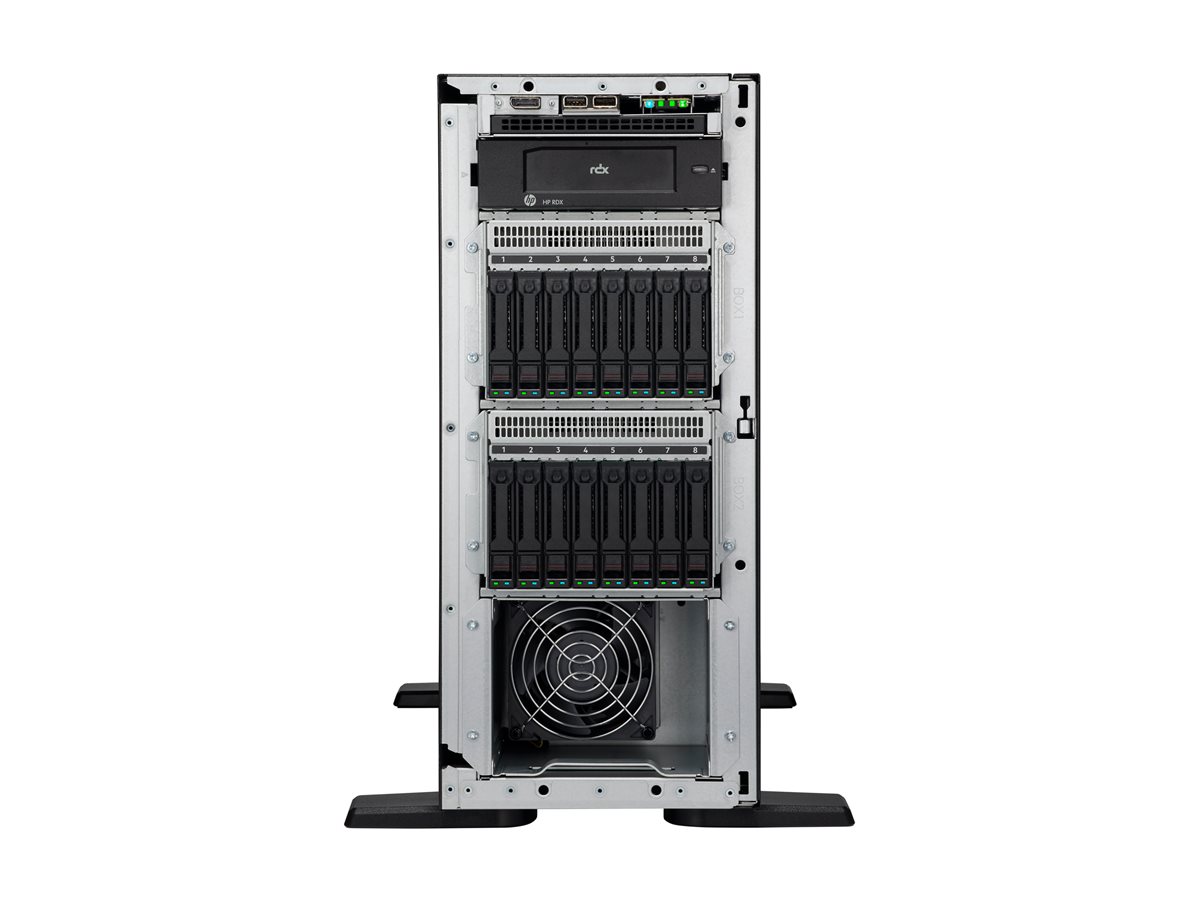

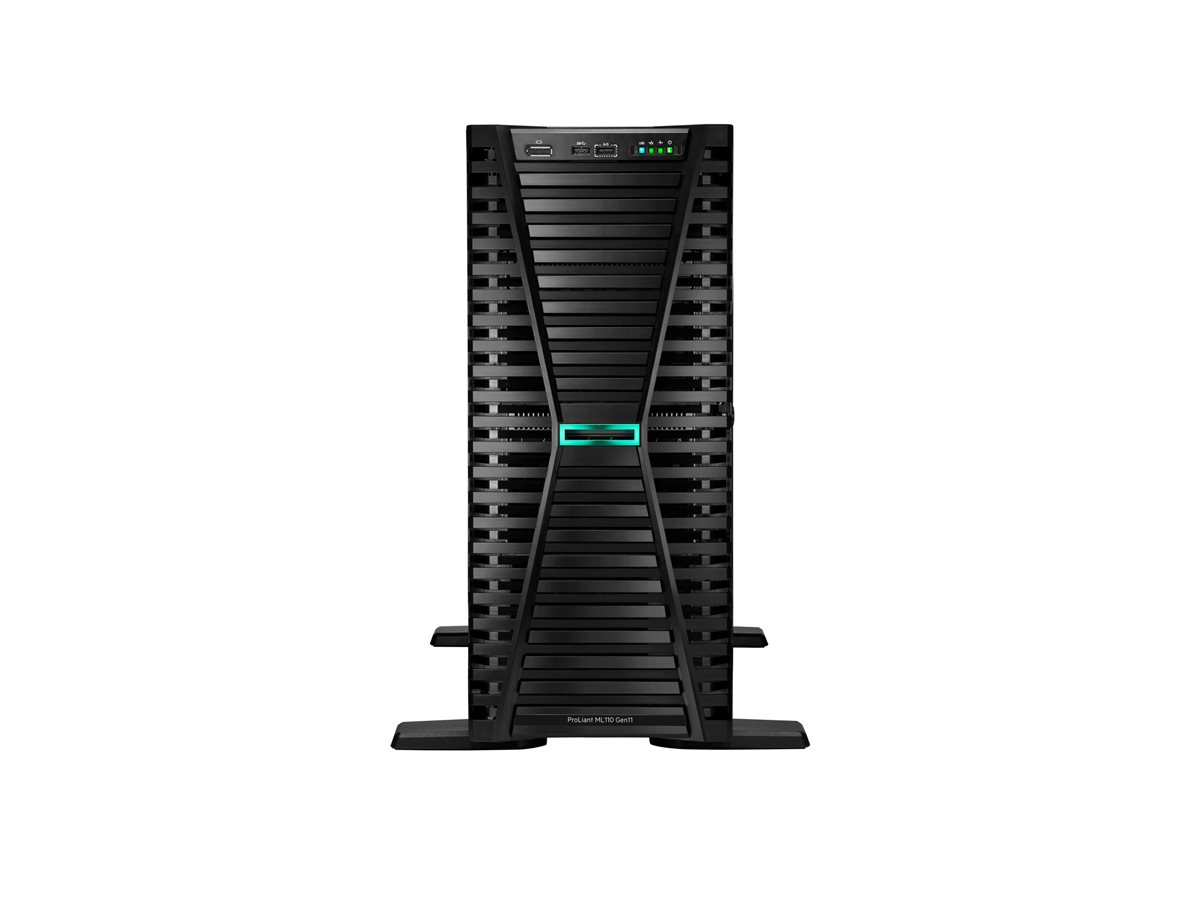

Hewlett Packard Enterprise - HPE ProLiant ML110 Gen11
Server - tower 4.5U - 1-way - 1 x Xeon Gold 5416S / up to 4 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 960 GB - Gigabit Ethernet - monitor: none
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant ML110 Gen11 - tower Xeon Gold 5416S 2 GHz - 64 GB - SSD 2 x 960 GB |
| Type | Server - tower |
| Height (Rack Units) | 4.5U |
| Localization | Region: North America |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon Gold 5416S / 2 GHz (up to 4 GHz, (16-core) |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 150W TDP |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 64 GB (installed) / 1 TB (max) - DDR5 SDRAM |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 960 GB - SATA 6Gb/s |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Yes |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Dimensions (WxDxH) | 7.7 in x 23.1 in x 18.2 in |
| Weight | 44.31 lbs |
| Environmental Standards | ENERGY STAR Qualified EPEAT Bronze |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Tower - 4.5U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25" ¦ 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x PCIe 5.0 x16 ¦ 1 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces | 1 x DisplayPort 1.1a ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) ¦ 1 x USB 2.0 (1 internal) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 2 x standard fans |
| Compliant Standards | AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, ACPI 6.4, SMBIOS 3.4, UEFI 2.7, Active Directory v1.0, UEFI Class 3, APML, MCTP |
| RAM | |
| Installed Size | 64 GB (installed) / 1 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4400 MT/s |
| Rated Memory Speed | 4800 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 14 (empty) |
| Features | HPE SmartMemory |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V |
| Power Provided | 800 watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA, DisplayPort |
| Operating System / Software | |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 960 GB |
| Manufacturer | HPE |
| Interface Type | SATA 6Gb/s |
| Features | Read Intensive, HPE Multi Vendor |
| Dimensions & Weight | |
| Width | 7.7 in |
| Depth | 23.1 in |
| Height | 18.2 in |
| Weight | 44.31 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 5416S |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, 150W TDP |
| Chipset Type | Intel C741 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
