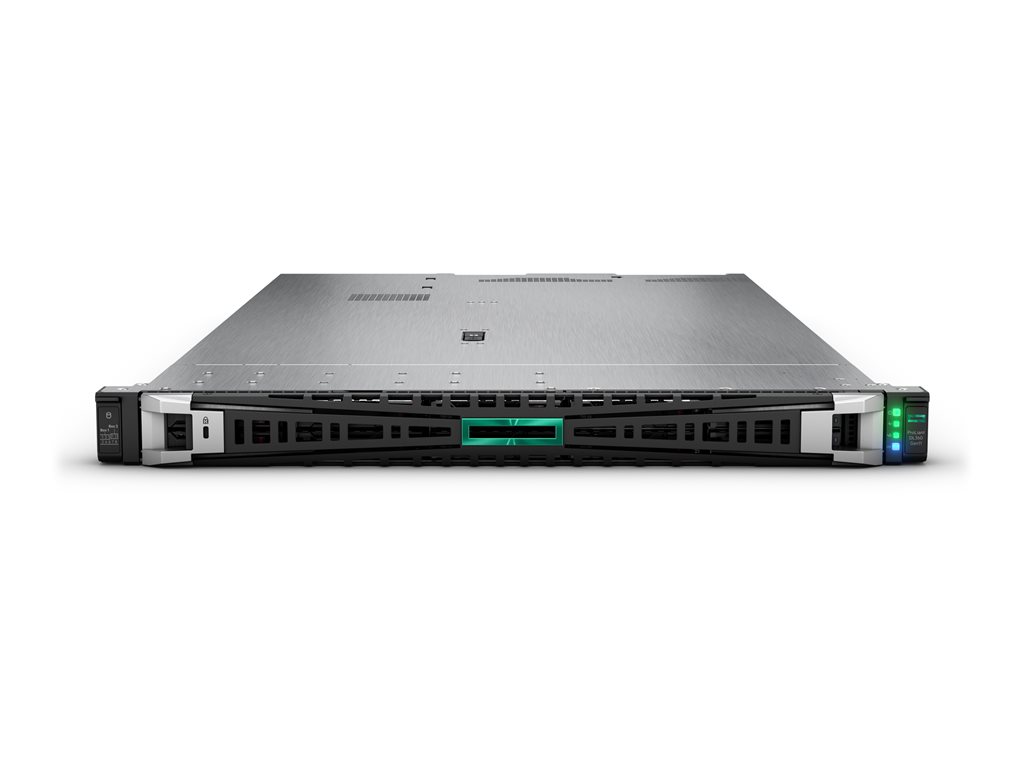

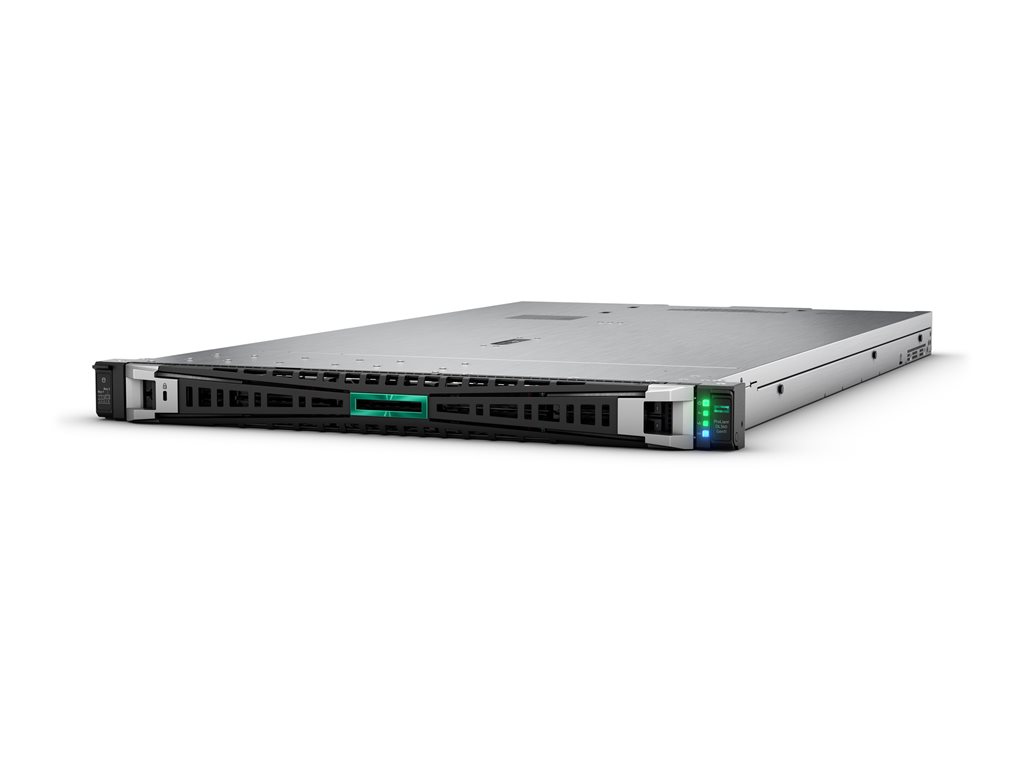

Hewlett Packard Enterprise - HPE ProLiant DL360 Gen11
Server - rack-mountable 1U - 2-way - 1 x Xeon Gold 5416S / up to 4 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL360 Gen11 - rack-mountable Xeon Gold 5416S 2 GHz - 64 GB - SSD 2 x 480 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: North America |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Gold 5416S / 2 GHz (up to 4 GHz, (16-core) |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 64 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 480 GB - SATA 6Gb/s |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE, 10GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Server UEFI |
| Dimensions (WxDxH) | 17.1 in x 29.6 in x 1.7 in |
| Weight | 32.1 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 (full-height) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 (low-profile, for hot-plug boot device) ¦ 1 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (2 processors must be installed) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 (2 processors must be installed) |
| Interfaces | 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) ¦ 1 x VGA ¦ 2 x LAN (1/10 Gigabit Ethernet) ¦ 1 x USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 5 x standard fans |
| Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4, Active Directory v1.0, Redfish API, SMBIOS 3.4, Triple DES |
| RAM | |
| Installed Size | 64 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4400 MT/s |
| Rated Memory Speed | 4800 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 30 (empty) |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 2 x 32 GB |
| Networking | |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, SMASH CLP, IPMI 2.0 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | PXE support, Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware vSphere 7.0 (ESXi) Update 3, VMware vSphere 8.0 (ESXi) Update 1, VMware vSphere 8.0 (ESXi) Update 2, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP5 QU1, SUSE Linux Enterprise Micro 5.5, Canonical Ubuntu 20.04.5 LTS, Canonical Ubuntu 22.04 LTS, Oracle Linux 9 |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Server UEFI |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 480 GB |
| Interface Type | SATA 6Gb/s |
| Features | HPE Multi Vendor, Read Intensive |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 29.6 in |
| Height | 1.7 in |
| Weight | 32.1 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Gold 5416S |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Chipset Type | Intel C741 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
