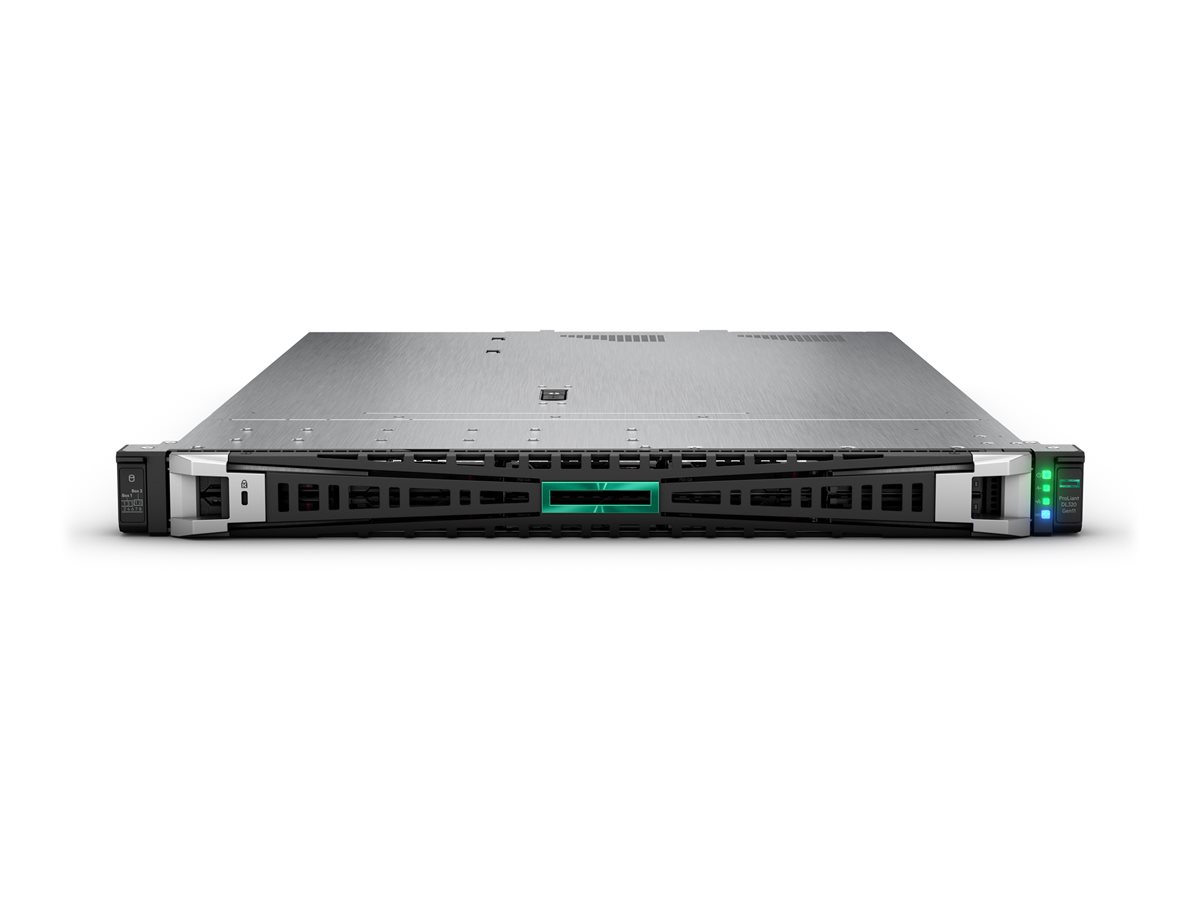

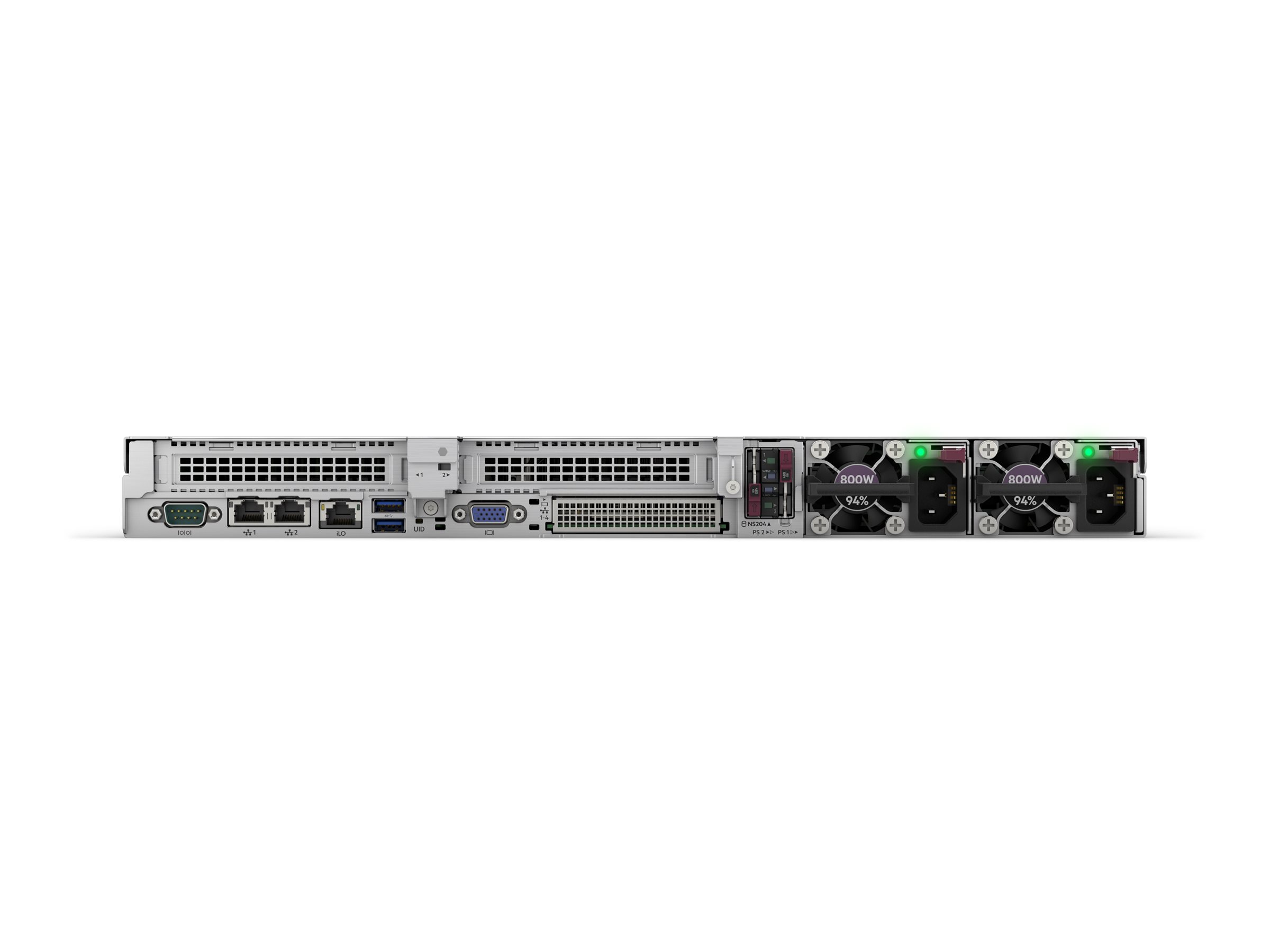

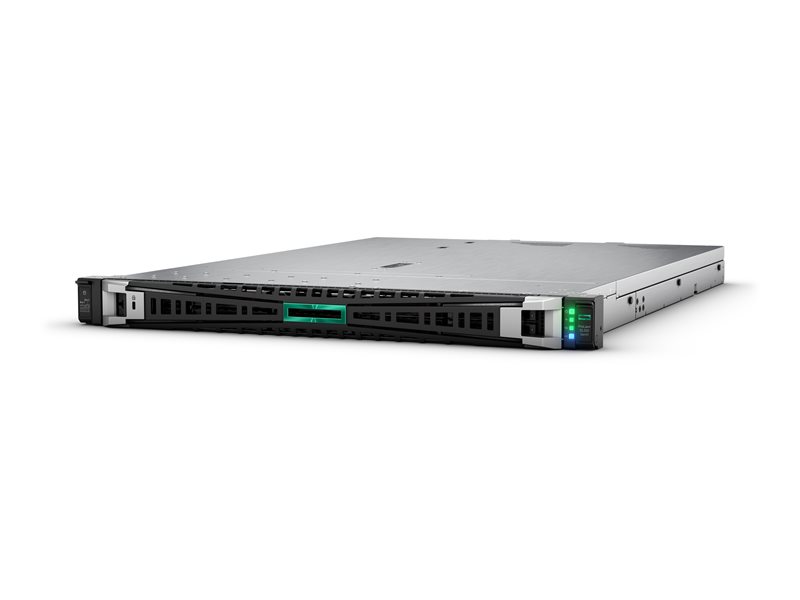

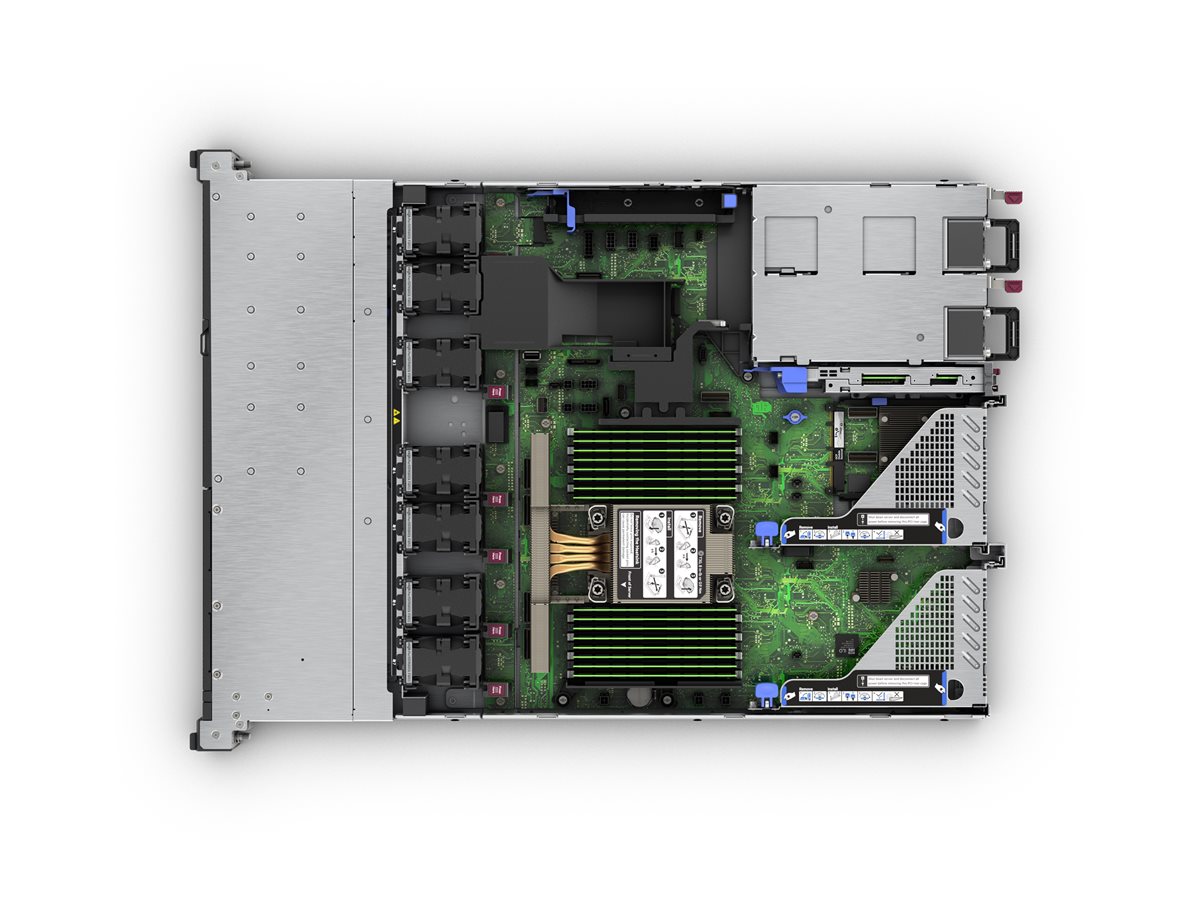

Hewlett Packard Enterprise - HPE ProLiant DL320 Gen11
Server - rack-mountable 1U - 1-way - 1 x Xeon Silver 4510 / up to 4.1 GHz - RAM 32 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none
Hewlett Packard Enterprise
P83284-005
0190017803364
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL320 Gen11 - rack-mountable Xeon Silver 4510 2.4 GHz - 32 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: North America |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon Silver 4510 / 2.4 GHz (up to 4.1 GHz, (12-core) |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 150W TDP |
| Cache Memory | 30 MB L3 cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 2.04 TB (max) - DDR5 SDRAM |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM) (NVM Express) - M.2 2280 (HPE NS204i-u) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE GreenLake for Compute Ops Management (subscription included) |
| Dimensions (WxDxH) | 17.1 in x 23.8 in x 1.7 in |
| Weight | 26.46 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Slots | 2 (total) / 2 (free) x PCIe 5.0 x16 - half-length, full-height ¦ 1 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces | 1 x HPE iLO (1 in front) (service port) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 1 x USB 2.0 ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 7 x high performance fans |
| Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3, Active Directory v1.0, SMBIOS 3.2, UEFI 2.7 |
| RAM | |
| Installed Size | 32 GB (installed) / 2.04 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4400 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 15 (empty) |
| Features | HPE SmartMemory, registered |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5720 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | ACPI support, PXE support, Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 30 MB |
| Cache Per Processor | 30 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, Ubuntu 22.04 LTS, CentOS |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE GreenLake for Compute Ops Management (subscription included) |
| Storage Controller (2nd) | |
| Type | 1 - M.2 2280 |
| Controller Interface Type | NVM Express |
| Storage Controller Name | HPE NS204i-u |
| RAID Level | RAID 1 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 23.8 in |
| Height | 1.7 in |
| Weight | 26.46 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4510 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 150W TDP |
| Chipset Type | Intel C741 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
