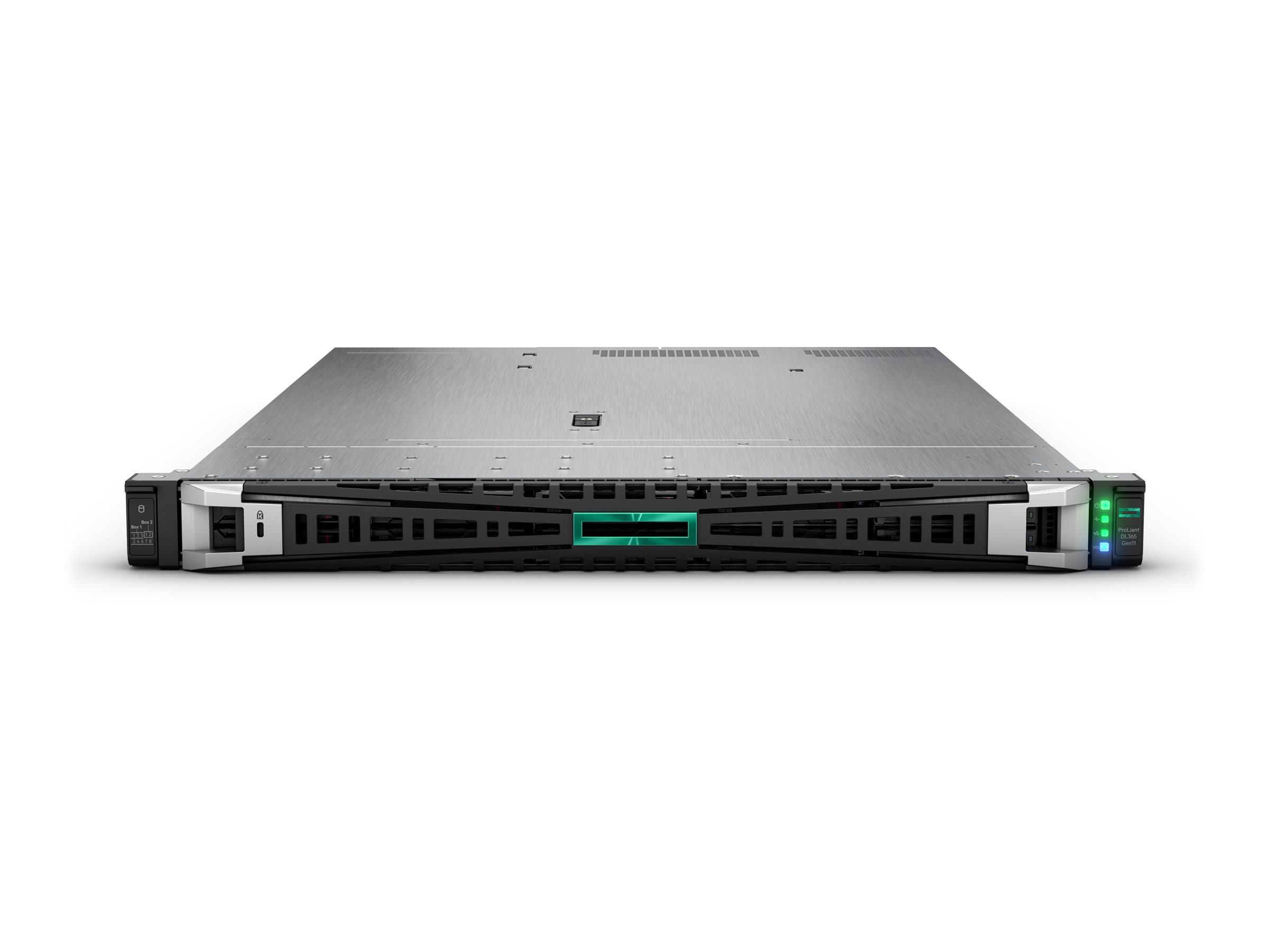

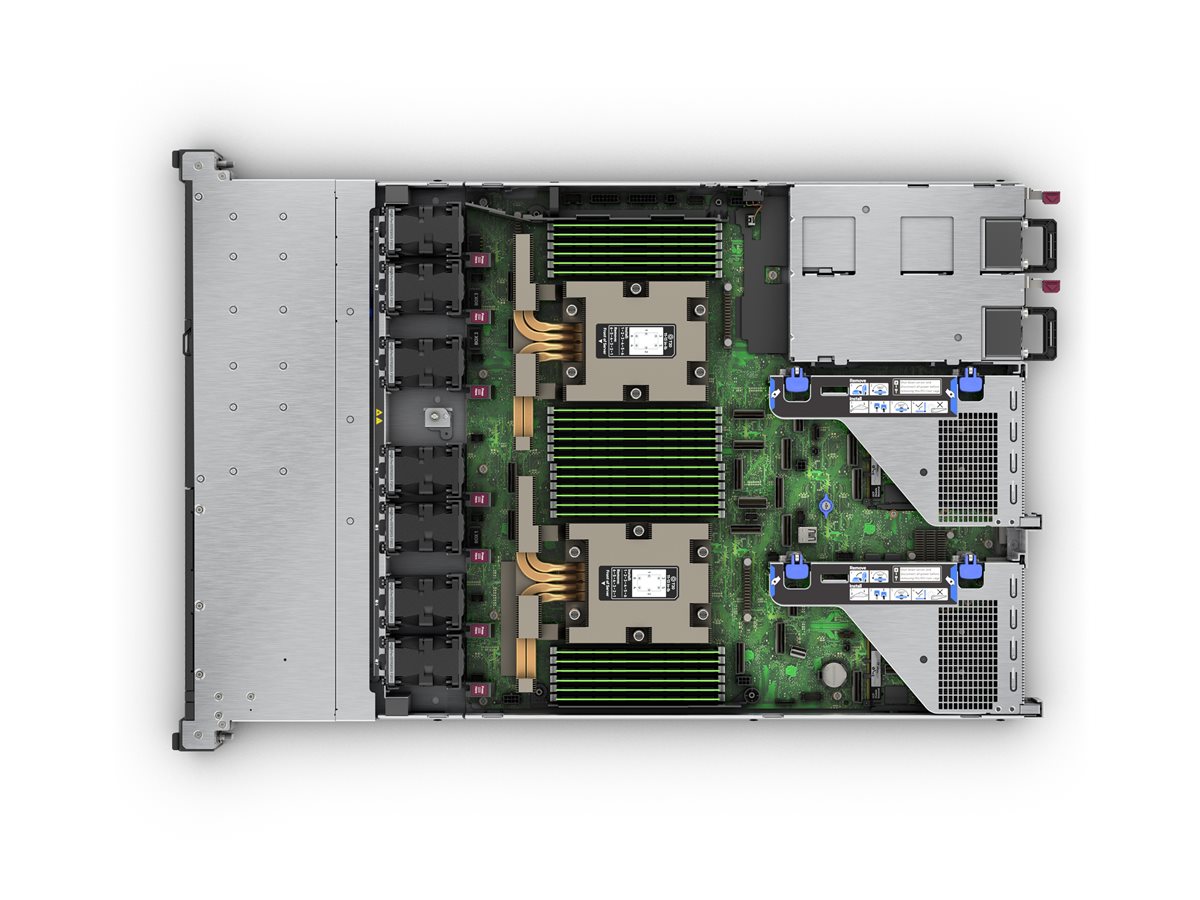

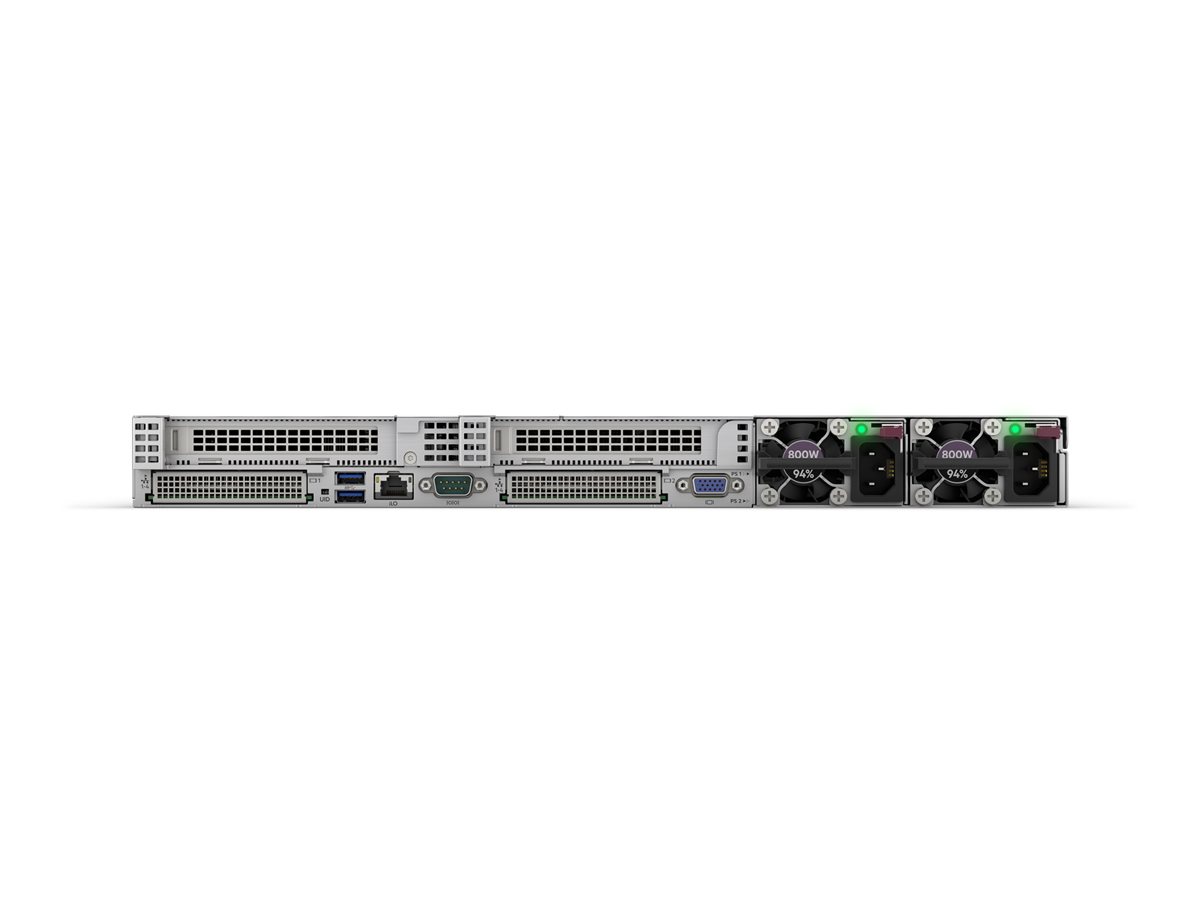

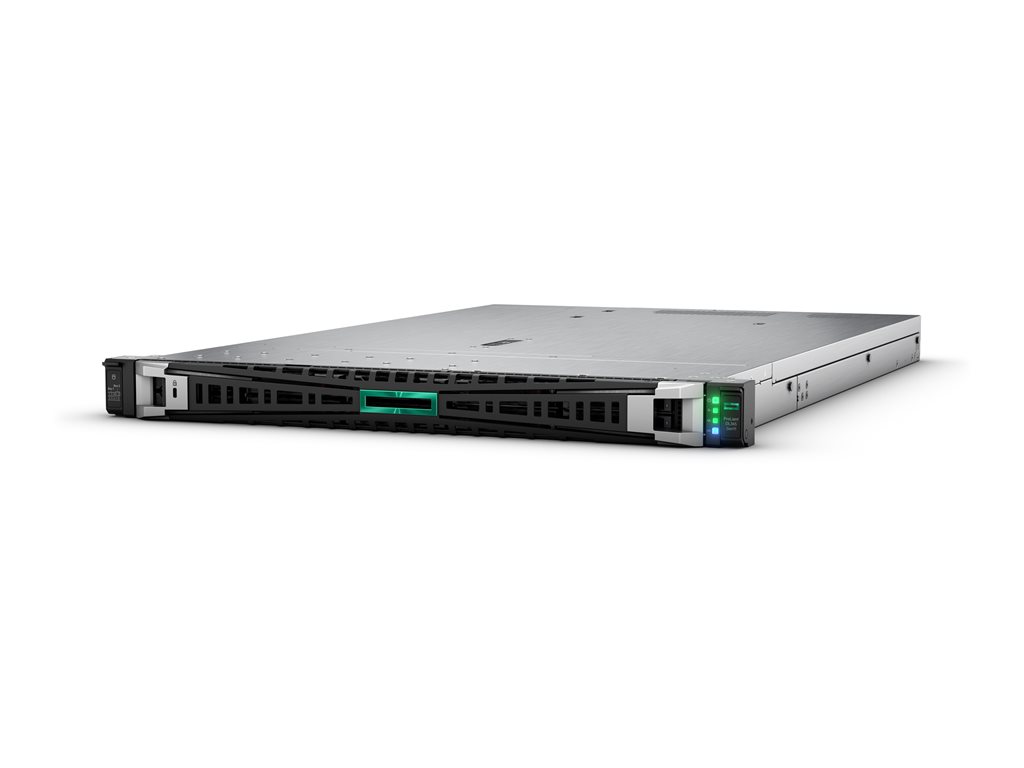

Hewlett Packard Enterprise - HPE ProLiant DL365 Gen11
Server - rack-mountable 1U - 2-way - 2 x EPYC 9115 / up to 4.1 GHz - RAM 256 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL365 Gen11 - rack-mountable EPYC 9115 2.6 GHz - 256 GB - SSD 2 x 480 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: North America |
| Server Scalability | 2-way |
| Processor | 2 x AMD EPYC 9115 / 2.6 GHz (up to 4.1 GHz, (16-core) |
| Cache Memory | 128 MB L3 cache |
| Cache Per Processor | 64 MB |
| RAM | 256 GB (installed) / 6 TB (max) - DDR5 SDRAM |
| Storage Controller | RAID OCP (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 480 GB - SATA 6Gb/s |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE, 10GbE |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.7 in x 25.6 in x 1.7 in |
| Weight | 28 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 (x16 mode) ¦ 2 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0 |
| Interfaces | 1 x HPE iLO (1 in front) (service port) ¦ 5 x USB 3.1 Gen 1 (1 front, 2 rear, 2 internal) ¦ 1 x VGA ¦ 2 x LAN (1/10 Gigabit Ethernet) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 7 x standard fans |
| Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, ACPI 6.1, WEEE, TLS v1.2, UEFI 2.7, SMBIOS 3.1, Redfish API, AES, Triple DES, Active Directory v1.0 |
| RAM | |
| Installed Size | 256 GB (installed) / 6 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 6400 MT/s |
| Rated Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 24 (total) / 16 (empty) |
| Features | Registered, HPE SmartMemory |
| Configuration Features | 8 x 32 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57416 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | L3 cache - 128 MB |
| Cache Per Processor | 64 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 480 GB |
| Interface Type | SATA 6Gb/s |
| Features | HPE Multi Vendor, Read Intensive |
| Dimensions & Weight | |
| Width | 17.7 in |
| Depth | 25.6 in |
| Height | 1.7 in |
| Weight | 28 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.6 in |
| Shipping Depth | 9.5 in |
| Shipping Height | 36.1 in |
| Processor / Chipset | |
| CPU | AMD EPYC 9115 |
| Clock Speed | 2.6 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 16-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
