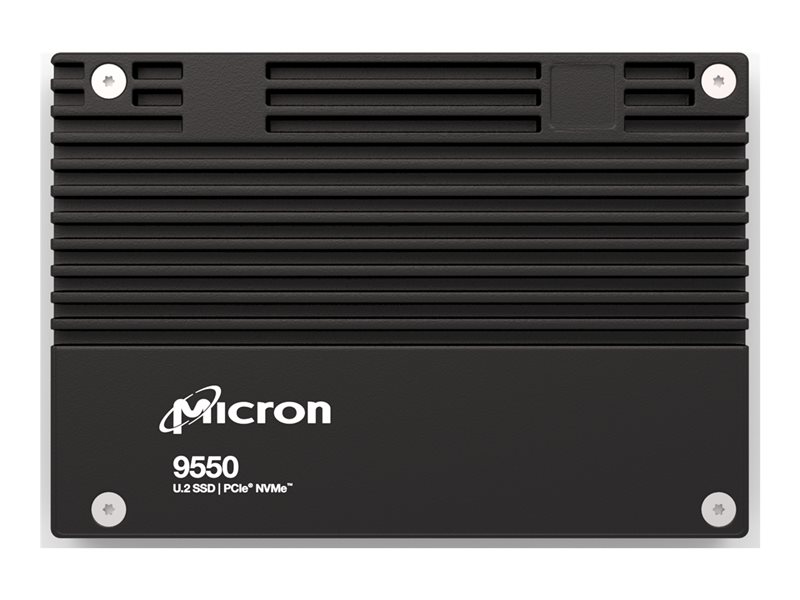

Micron Technology - Micron 9550 MAX
SSD - Enterprise, Mixed Use - encrypted - 3.2 TB - internal - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.02 - TAA Compliant
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Micron 9550 MAX - SSD - Enterprise, Mixed Use - 3.2 TB - U.2 PCIe 5.0 x4 (NVMe) - TAA Compliant |
| Type | Solid state drive - internal |
| Capacity | 3.2 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Drive Class | Enterprise, Mixed Use |
| Features | NVM Express (NVMe) 2.0b, power loss data protection, Enterprise Data Path Protection, Redundant Array of Independent NAND, Firmware Activate without Reset, Secure Erase function, Secure Boot, Active Garbage Collection, TRIM support, NVMe standard Self-Monitoring and Reporting Technology ((SMART), Hardware Root of Trust, Secure Signed Firmware, 232-layer TLC NAND technology, Open Compute Project 2.0, Security Protection Data Model (SPDM), S.M.A.R.T. |
| Dimensions (WxDxH) | 2.8 in x 4 in x 0.6 in |
| Weight | 6.45 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 3.2 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Bytes per Sector | 512 |
| Features | NVM Express (NVMe) 2.0b, power loss data protection, Enterprise Data Path Protection, Redundant Array of Independent NAND, Firmware Activate without Reset, Secure Erase function, Secure Boot, Active Garbage Collection, TRIM support, NVMe standard Self-Monitoring and Reporting Technology ((SMART), Hardware Root of Trust, Secure Signed Firmware, 232-layer TLC NAND technology, Open Compute Project 2.0, Security Protection Data Model (SPDM), S.M.A.R.T. |
| Width | 2.8 in |
| Depth | 4 in |
| Height | 0.6 in |
| Weight | 6.45 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC, UL/cUL, BSMI, RCM, WEEE, TUV, VCCI, IC, Morocco, UkrSEPRO, UKCA, Micron Green Standard, RRL, KC |
| Package Details | Cardboard box |
| TAA Compliant | Yes |
| Power | |
| Power Consumption | 18 Watt (sequential read) ¦ 16 Watt (sequential write) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Performance | |
| Drive Writes Per Day (DWPD) | 3 |
| SSD Endurance | 37200 TB |
| Drive Class | Enterprise, Mixed Use |
| Internal Data Rate | 14000 MBps (read) / 6000 MBps (write) |
| 4KB Random Read | 3300000 IOPS |
| 4KB Random Write | 540000 IOPS |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 5.1 in |
| Shipping Depth | 0.6 in |
| Shipping Height | 3.8 in |
| Shipping Weight | 7.51 oz |
| Expansion & Connectivity | |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| Compatible Bay | 2.5" |
