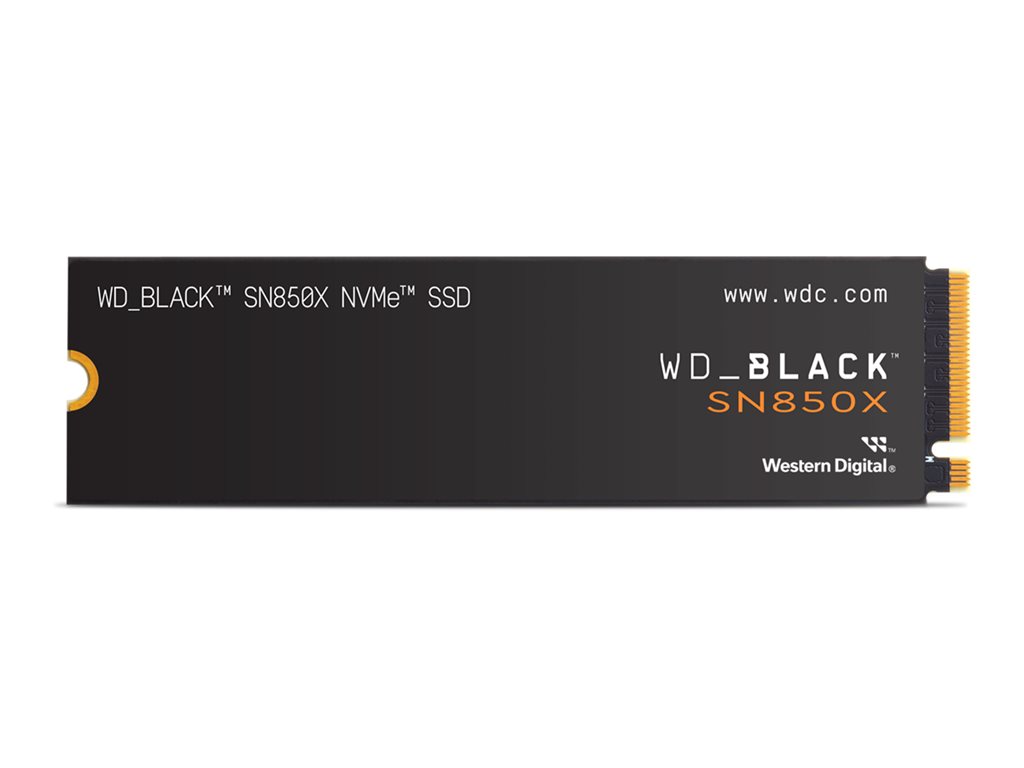

Western Digital - WD_BLACK SN850X WDS800T2X0E
SSD - encrypted - 8 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - TCG Opal Encryption 2.01
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | WD_BLACK SN850X WDS800T2X0E - SSD - 8 TB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 8 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | Adaptive thermal monitoring, overhead balancing, predictive loading, Microsoft DirectStorage API support |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.2 in |
| Weight | 0.3 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 8 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | Adaptive thermal monitoring, overhead balancing, predictive loading, Microsoft DirectStorage API support |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.2 in |
| Weight | 0.3 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 185 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Performance | |
| SSD Endurance | 4800 TB |
| Internal Data Rate | 7200 MBps (read) / 6600 MBps (write) |
| 4KB Random Read | 1200000 IOPS |
| 4KB Random Write | 1200000 IOPS |
| Software & System Requirements | |
| Software Included | WD_BLACK Dashboard (Windows only) |
| OS Required | Microsoft Windows 10 or later |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 M key |
| Compatible Bay | M.2 2280 |
