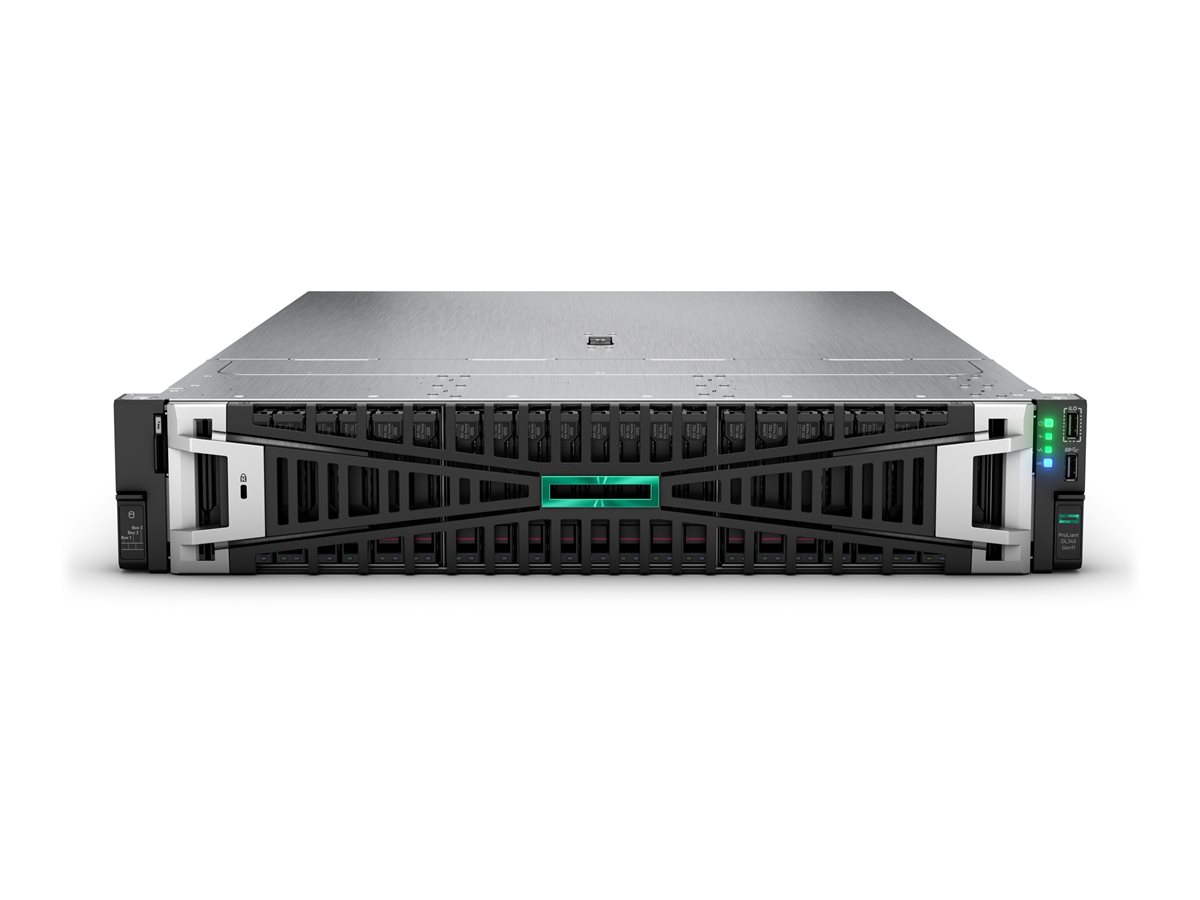

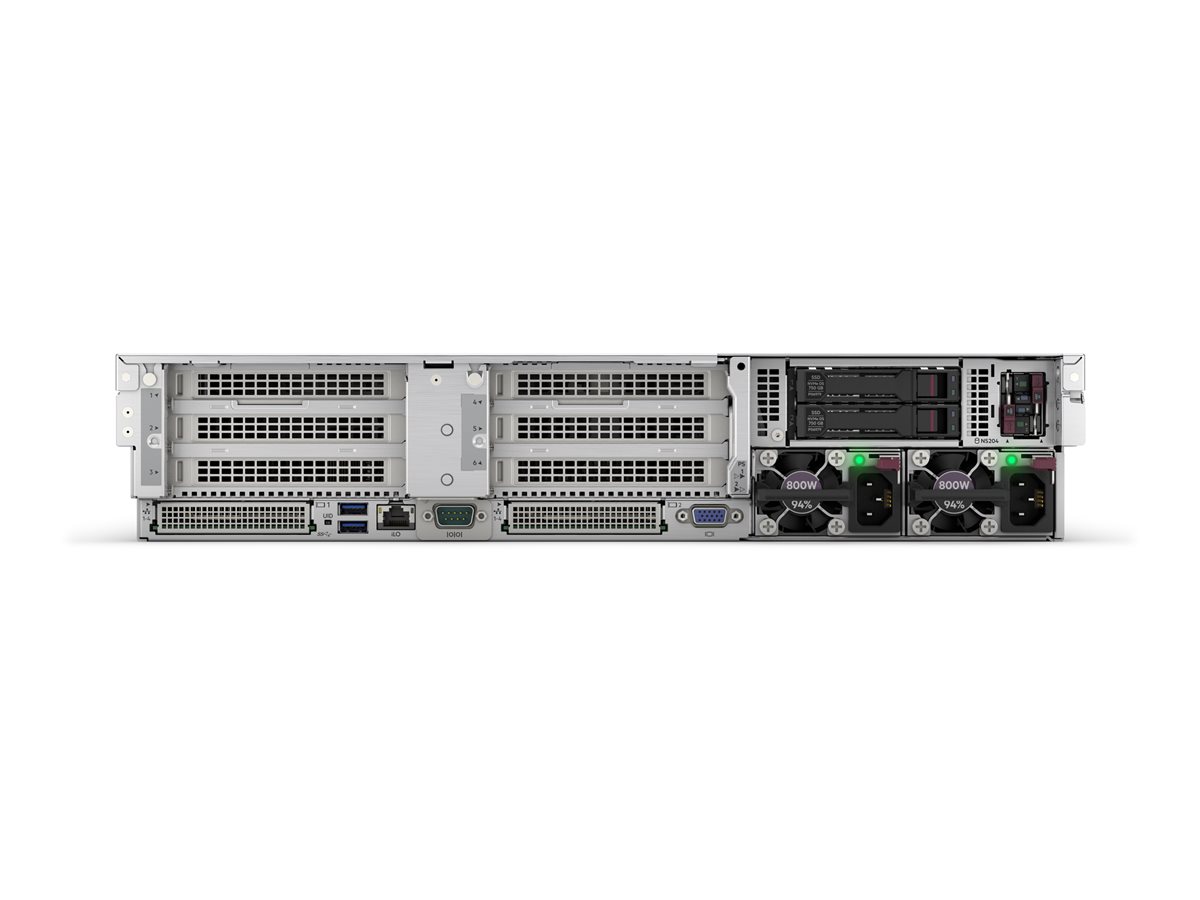

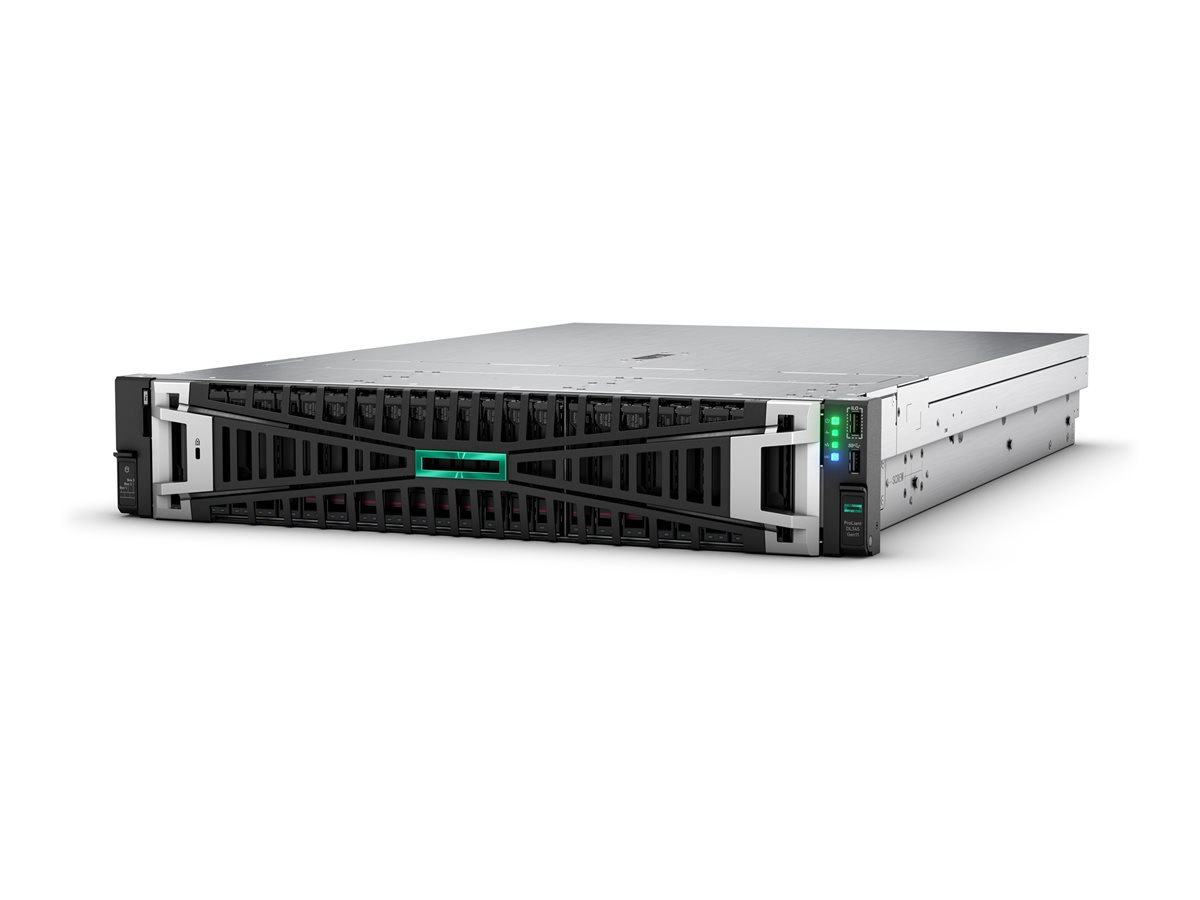

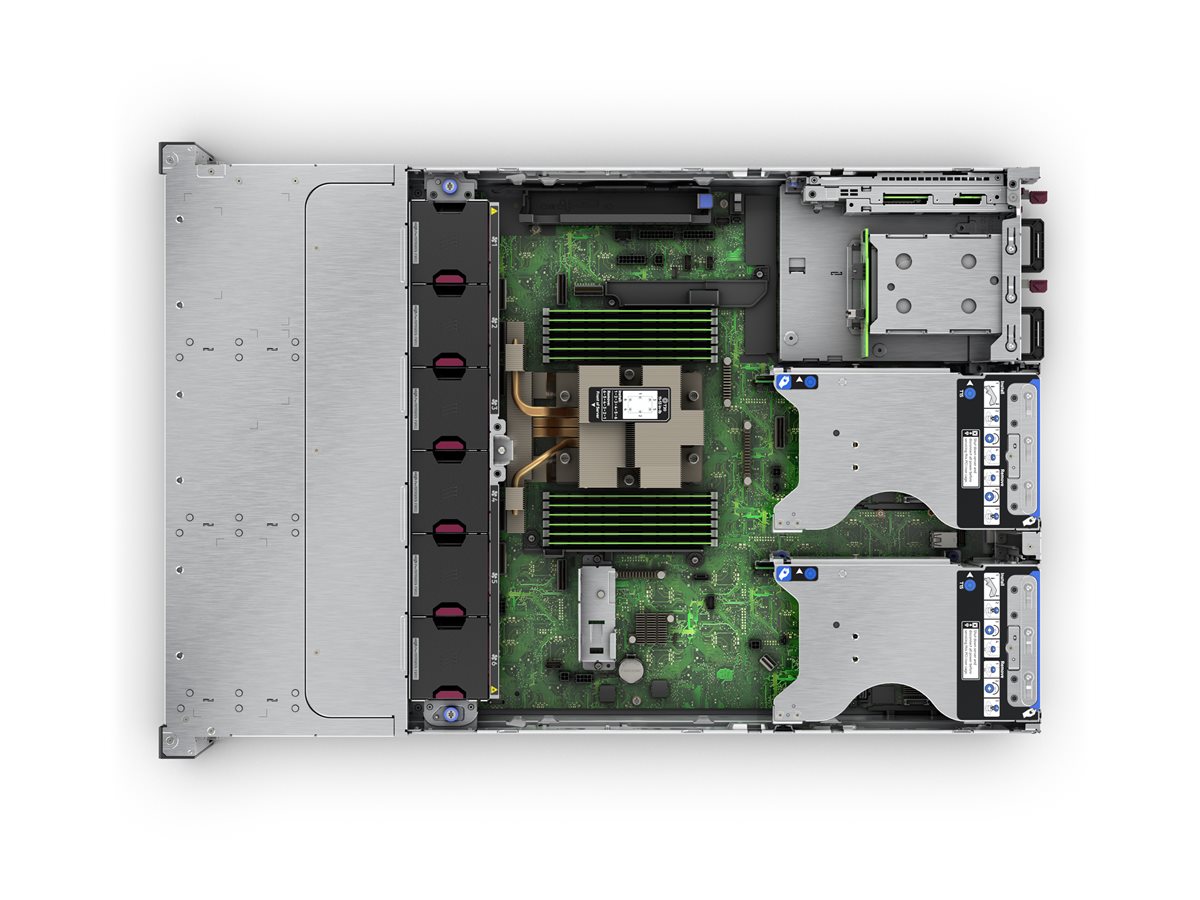

Hewlett Packard Enterprise - HPE ProLiant DL345 G11
Server - rack-mountable 2U - 1-way - 1 x EPYC 9354P / up to 3.8 GHz - RAM 256 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 1.92 TB - NVMe - 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet - no OS - monitor: none - Smart Choice
Hewlett Packard Enterprise
P75332-005
0190017748931
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL345 G11 - rack-mountable EPYC 9354P 3.25 GHz - 256 GB - SSD 2 x 1.92 TB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localization | Region: United States, Canada |
| Server Scalability | 1-way |
| Processor | 1 x AMD EPYC 9354P / 3.25 GHz (up to 3.8 GHz, (32-core) |
| Cache Memory | 256 MB L3 cache |
| Cache Per Processor | 256 MB |
| RAM | 256 GB (installed) / 3 TB (max) - DDR5 SDRAM |
| Storage Controller | RAID (HPE MR416i-p Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 1.92 TB - PCI Express - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 10GbE, 25GbE, 1GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Dimensions (WxDxH) | 17.6 in x 25.4 in x 3.4 in |
| Weight | 35.36 lbs |
| Manufacturer Selling Program | HPE Smart Choice |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States, Canada |
| Expansion / Connectivity | |
| Bays | 8 hot-swap 2.5" SFF |
| Slots | 2 PCIe 5.0 x16 - half-length, full-height (x16 mode) |
| Interfaces | 1 x HPE iLO (1 in front) (service port) ¦ 5 x USB 3.2 Gen 1 (1 front, 2 rear, 2 internal) ¦ 1 x VGA ¦ 2 x LAN (10/25 Gigabit Ethernet) - SFP28 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 6 x standard fans, HPE Easy Install Rail 2 Kit, performance heatsink |
| Compliant Standards | WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, UEFI 2.7, SMBIOS 3.1, Redfish API, AES, Triple DES, UEFI Class 3, Active Directory v1.0, APML 1.0 |
| Manufacturer Selling Program | HPE Smart Choice |
| RAM | |
| Installed Size | 256 GB (installed) / 3 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 12 (total) / 8 (empty) |
| Features | HPE SmartMemory, registered |
| Configuration Features | 4 x 64 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 2 x 10/25 Gigabit Ethernet SFP28 |
| Ethernet Controller | Broadcom BCM57414 |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet, Ethernet, Gigabit Ethernet, Fast Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID |
| Storage Controller Name | HPE MR416i-p Gen11 SPDM |
| Channel Qty | 16 |
| Buffer Size | 8 GB |
| Cache Memory | |
| Installed Size | L3 cache - 256 MB |
| Cache Per Processor | 256 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| OS Certified | Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, VMware ESXi 7.0 update 3, VMware ESXi 8.0 |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Hard Drive | |
| Type | SSD |
| Capacity | 2 x 1.92 TB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 25.4 in |
| Height | 3.4 in |
| Weight | 35.36 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.6 in |
| Shipping Depth | 36.1 in |
| Shipping Height | 10.6 in |
| Processor / Chipset | |
| CPU | AMD EPYC 9354P |
| Clock Speed | 3.25 GHz |
| Max Turbo Speed | 3.8 GHz |
| Number of Cores | 32-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
