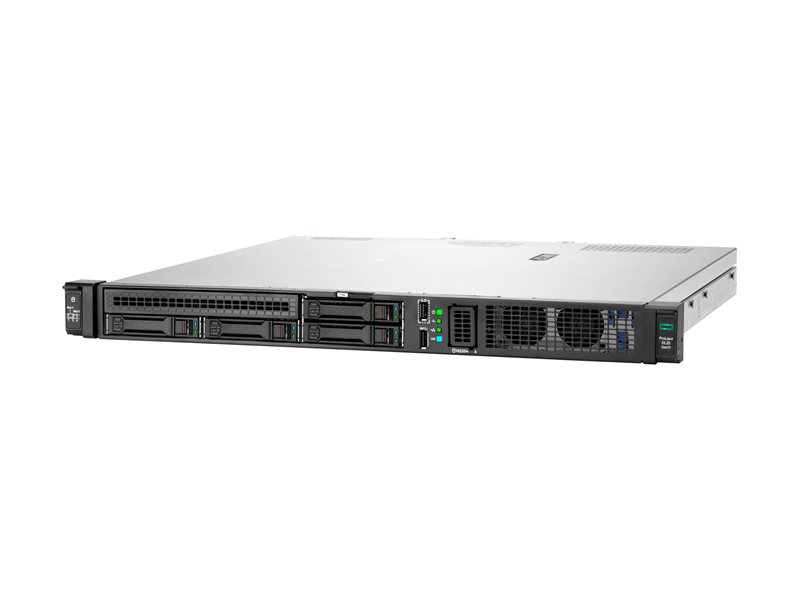

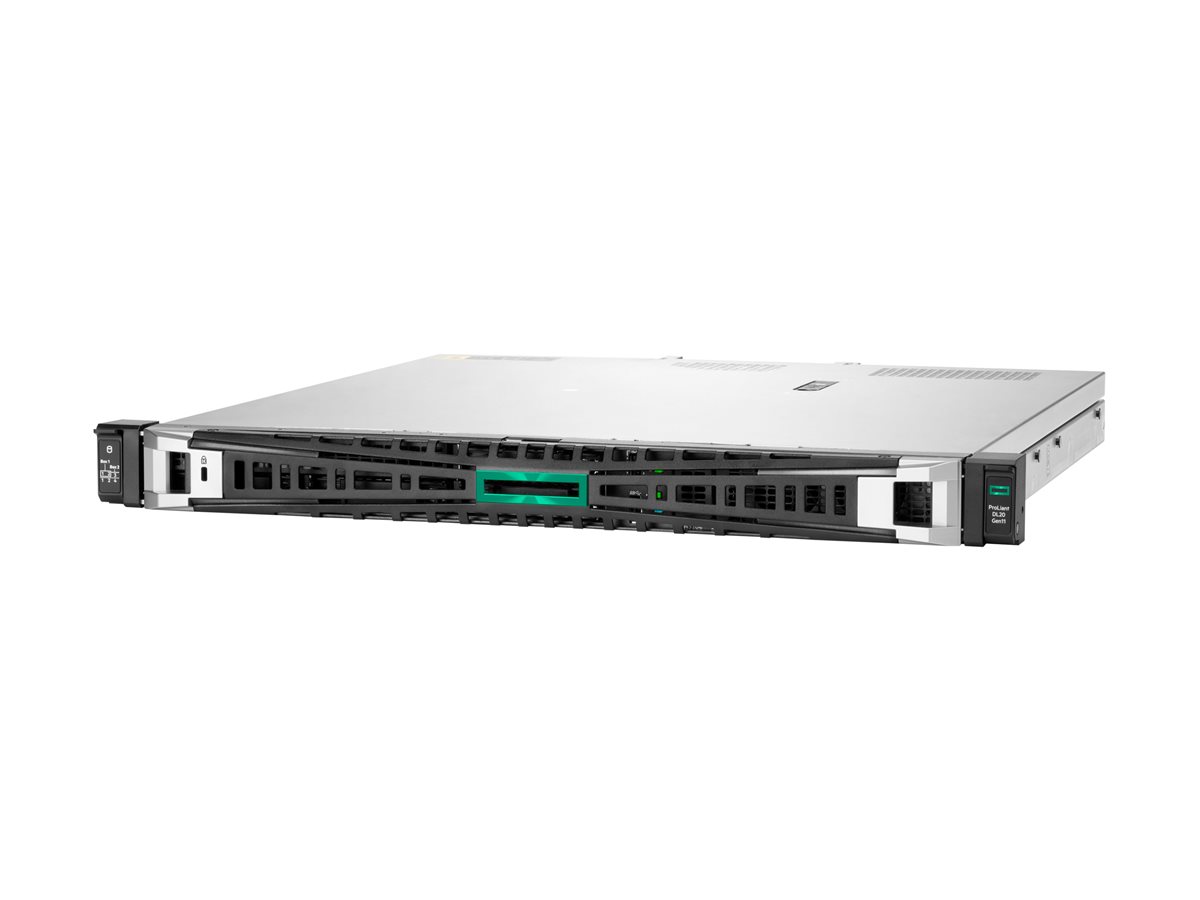

Hewlett Packard Enterprise - HPE ProLiant DL20 Gen11
Server - rack-mountable - 1U - 1-way - 1 x Xeon E-2436 / 2.9 GHz - RAM 32 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - SSD 2 x 960 GB - Matrox G200 - Gigabit Ethernet - no OS - monitor: none - Smart Choice
Hewlett Packard Enterprise
P71682-005
0190017721552
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL20 Gen11 - rack-mountable - Xeon E-2436 2.9 GHz - 32 GB - SSD 2 x 960 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: Canada, United States |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon E-2436 / 2.9 GHz (, up to 5 GHz, (6-core) |
| Cache Memory | 18 MB |
| Cache Per Processor | 18 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x SSD 960 GB - SATA - 2.5" |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200 |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Software Included | HPE Intelligent Provisioning, HPE iLO Management |
| Dimensions (WxDxH) | 17.1 in x 14.9 in x 1.7 in |
| Weight | 19.84 lbs |
| Manufacturer Selling Program | HPE Smart Choice |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Localization | Region: Canada, United States |
| Expansion / Connectivity | |
| Bays | 4 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 (external) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) (internal) |

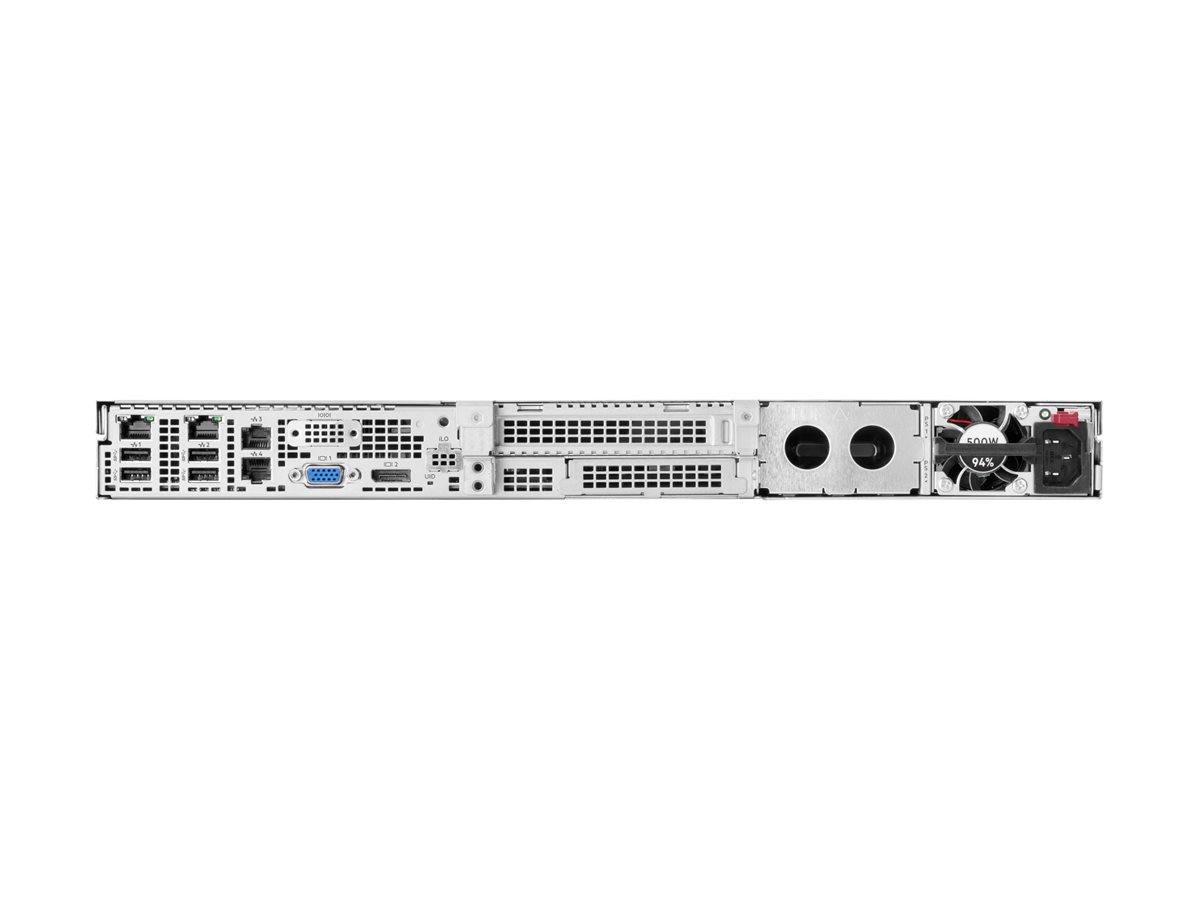

| Interfaces | 1 x DisplayPort ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - Type A (1 front) (service port) ¦ 5 x USB 3.2 Gen 1 - Type A (1 front, 4 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | HPE Easy Install Rails, 3 performance single rotor non-hot plug and non-redundant fans |
| Compliant Standards | AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, ACPI 6.3, SMBIOS 3.2, Active Directory v1.0, UEFI 2.9 |
| Manufacturer Selling Program | HPE Smart Choice |
| RAM | |
| Installed Size | 32 GB / 128 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | Unbuffered |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x RAID - OCP |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | 18 MB |
| Cache Per Processor | 18 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | VGA, DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE Intelligent Provisioning, HPE iLO Management |
| Hard Drive | |
| Type | SSD - 2.5" |
| Capacity | 2 x 960 GB |
| Interface Type | SATA |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 14.9 in |
| Height | 1.7 in |
| Weight | 19.84 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon E-2436 |
| Clock Speed | 2.9 GHz |
| Max Turbo Speed | 5 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C262 |
