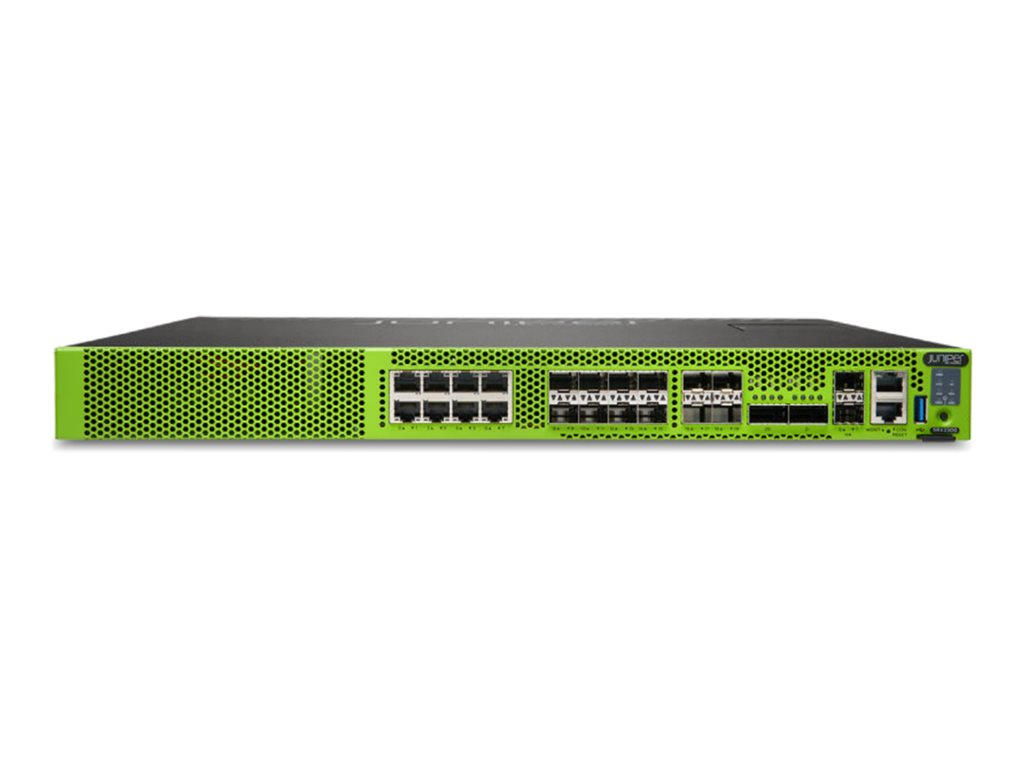

Juniper Networks - Juniper Networks SRX2300
Security appliance - 2.5GbE, 5GbE, 25GbE, 40GbE, 100GbE - front to back airflow - 1U - rack-mountable
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Juniper Networks SRX2300 - security appliance |
| Device Type | Security appliance |
| Form Factor | Front to back airflow rack-mountable - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Firewall throughput (IMIX): 28 Gbps ¦ Firewall throughput (1518-byte packet size): 39 Gbps ¦ VPN throughput (IMIX IPSec): 18 Gbps ¦ VPN throughput (1400 B IPSec): 36 Gbps ¦ Next-generation firewall performance: 35 Gbps ¦ Advanced threat protection throughput: 6 Gbps |
| Capacity | SSL connections per second: 8000 ¦ Concurrent sessions: 5000000 ¦ IPv4 routing table size: 2000000 ¦ IPSec VPN tunnels: 4000 |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 18.2 in x 1.7 in |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 17.3 in |
| Depth | 18.2 in |
| Height | 1.7 in |
| Expansion / Connectivity | |
| Interfaces | 8 x 1/2.5/5/10 Gigabit Ethernet - RJ-45 ¦ 8 x 1 Gigabit Ethernet/10Gb Ethernet - SFP+ ¦ 4 x 1Gb Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 ¦ 2 x 40Gb Ethernet/100Gb Ethernet - QSFP28 ¦ 1 x 1Gb Ethernet (HA) - SFP (mini-GBIC) ¦ 1 x management - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Compliant Standards | FCC Class A certified, RoHS |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network / Transport Protocol | IPSec, IPv4, IPv6, IGMPv2, IGMP, PPPoE, DHCP, DNS, DDNS, RSVP |
| Routing Protocol | VXLAN, GRE, MPLS, VRRP, DVMRP, MSDP, ECMP, static IP routing, RIP-1, RIP-2, OSPF, OSPFv3, BGP, IS-IS, IGMP, IGMPv2 |
| Remote Management Protocol | LDP, SSH, Telnet, SNMP, MIB, CLI, RMON, NETCONF |
| Performance | Firewall throughput (IMIX): 28 Gbps ¦ Firewall throughput (1518-byte packet size): 39 Gbps ¦ VPN throughput (IMIX IPSec): 18 Gbps ¦ VPN throughput (1400 B IPSec): 36 Gbps ¦ Next-generation firewall performance: 35 Gbps ¦ Advanced threat protection throughput: 6 Gbps |
| Capacity | SSL connections per second: 8000 ¦ Concurrent sessions: 5000000 ¦ IPv4 routing table size: 2000000 ¦ IPSec VPN tunnels: 4000 |
| Status Indicators | Power, HA, RPS (Redundant Power Supply), SSD activity, alarm, status, link/activity |
| Features | Reset button, ground points, 3+1 redundant fans, Ethernet Virtual Private Network (EVPN), Advanced Threat Protection (ATP), anti-spam protection, antivirus analysis, hardware encryption, Intrusion Prevention System (IPS), sandboxing, Web Filtering, zero-day malware detection, VPN support, Quality of Service (QoS), NAT support, Trusted Platform Module 2.0 (TPM 2.0), Secure Zero-touch provisioning (SZTP), DDos attack prevention, firewall protection, Carrier Grade NAT (CGN/CGNAT), PAT support, Pre-Shared Key (PSK), Dead Peer Detection (DPD), IPinIP support, High Availability, Protocol Independent Multicast (PIM), Source-Specific Multicast (SSM), policy based routing, source based routing, DiffServ Code Point (DSCP) support, Weighted Random Early Detection (WRED), real-time performance monitoring (RPM), J-Flow, Circuit cross-connect (CCC), translational cross-connect (TCC), Virtual Private LAN Service (VPLS), next-generation multicast VPN (NG-MVPN), SNMP trap, SD-WAN support |
| Encryption Algorithm | SSL, IKEv1, 3DES, AES-GCM, AEC-CBC, PKI, ESP, MD5, SHA-196, SHA-256, DES, IKEv2 |
| Authentication Method | X.509 certificates |
| Compliant Standards | IEEE 802.1p |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 450 Watt |
| Software / System Requirements | |
| OS Provided | JUNOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
