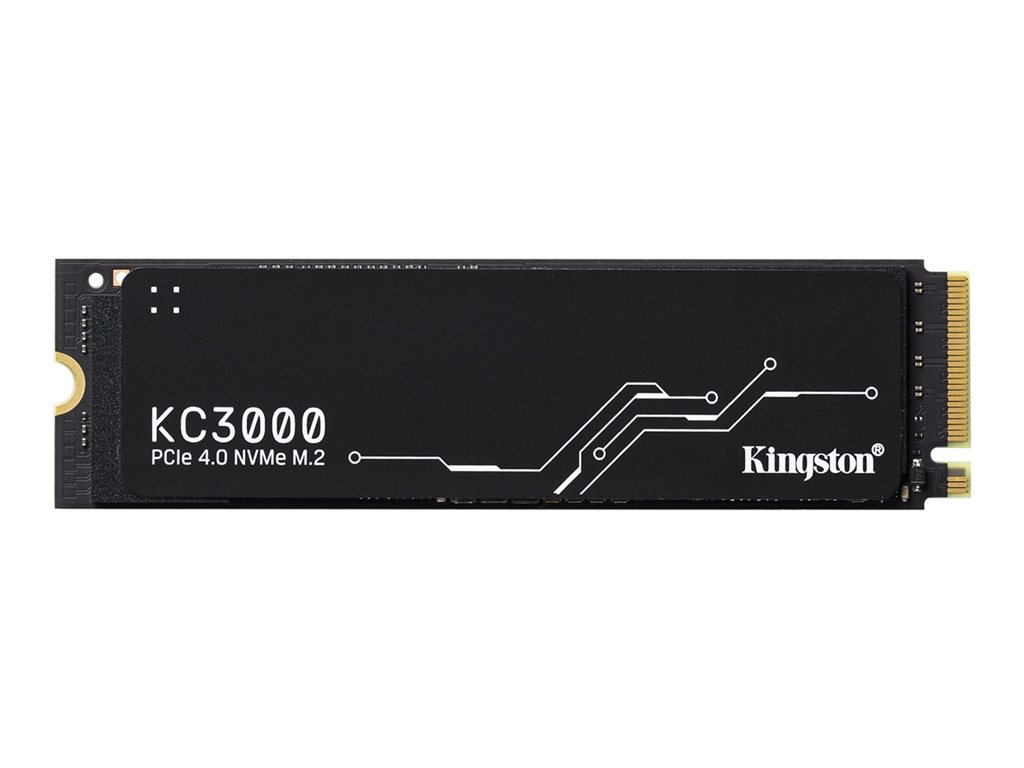

Kingston - Kingston KC3000
SSD - 4096 GB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe)
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Kingston KC3000 - SSD - 4096 GB - PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 4096 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | NVM Express (NVMe), Phison E18 controller, graphene aluminum heat spreader, DRAM cache |
| Dimensions (WxDxH) | 0.9 in x 3.1 in x 0.1 in |
| Weight | 0.34 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 4096 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | NVM Express (NVMe), Phison E18 controller, graphene aluminum heat spreader, DRAM cache |
| Width | 0.9 in |
| Depth | 3.1 in |
| Height | 0.1 in |
| Weight | 0.34 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Technical support - 5 years |
| Miscellaneous | |
| Package Type | Bulk |
| Power | |
| Power Consumption | 50 mW (idle) ¦ 0.36 Watt (average) ¦ 2.7 Watt (max read) ¦ 10.2 Watt (max write) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Vibration Tolerance (operating) | 2.17 g @ 7-800 Hz |
| Vibration Tolerance (non-operating) | 20 g @ 20-1000 Hz |
| Performance | |
| SSD Endurance | 3.2 PB |
| Internal Data Rate | 7000 MBps (read) / 7000 MBps (write) |
| 4KB Random Read | 1000000 IOPS |
| 4KB Random Write | 1000000 IOPS |
| Reliability | |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
