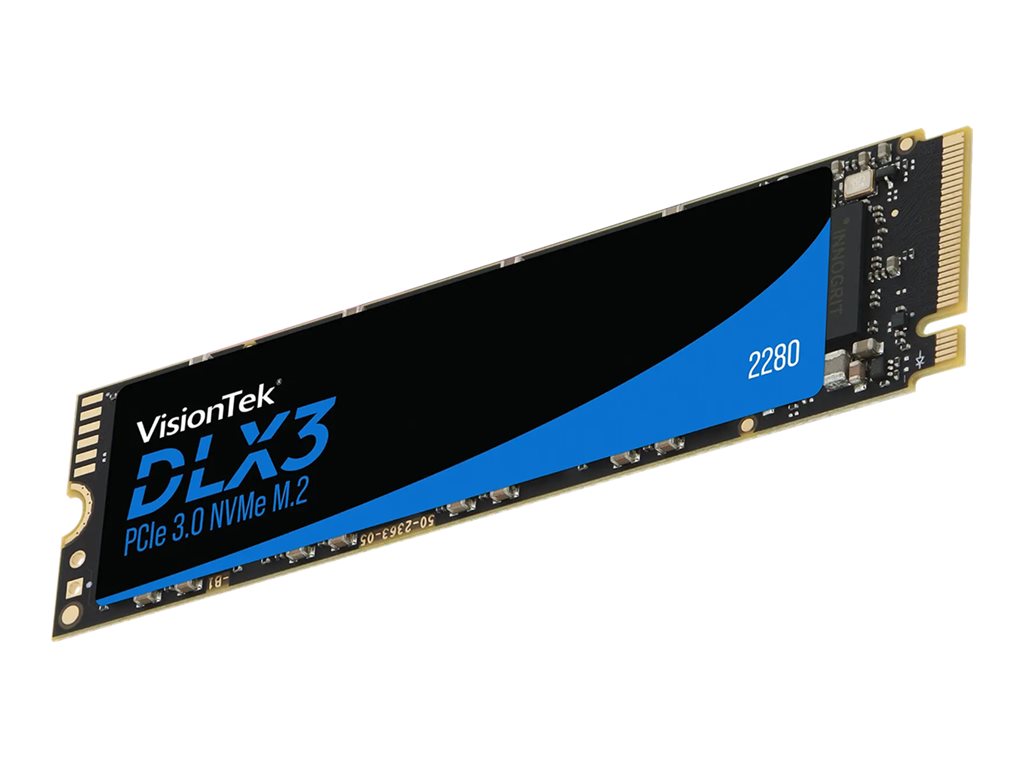

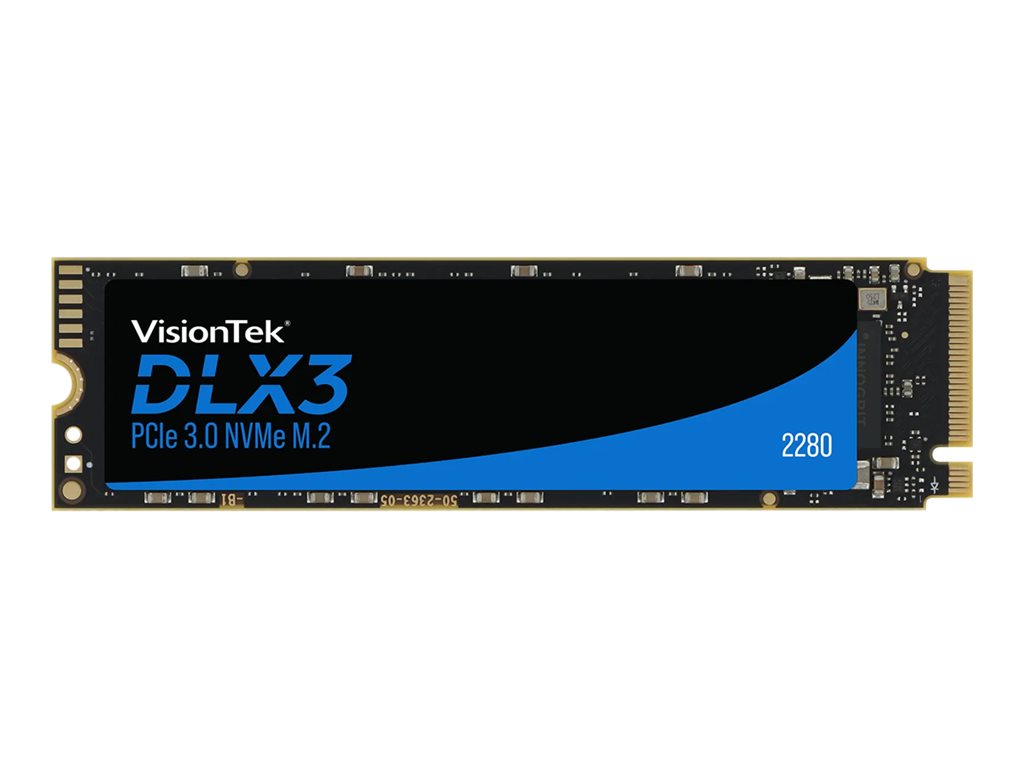

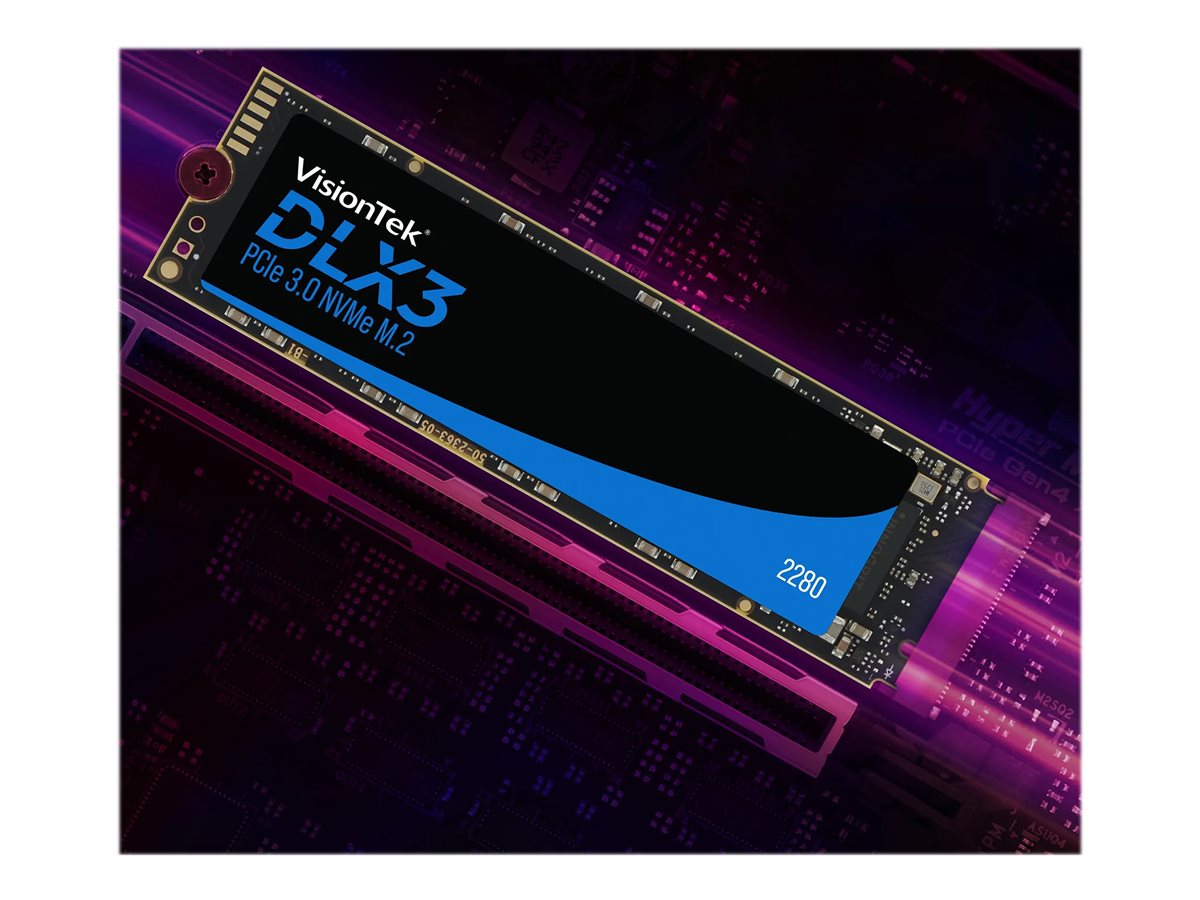

VisionTek - VisionTek DLX3
SSD - 1 TB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe)
VisionTek
901556
0810078051541
N/A
New
Product Description
Additional Details
What's Included
| Main Specifications | |
|---|---|
| Product Description | VisionTek DLX3 - SSD - 1 TB - PCIe 3.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | InnoGrit IG5216, SLC cache, 3D NAND Technology, Global Wear Leveling, StaticDataRefresh Technology, Advanced Garbage Collection, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, NVMe Security Erase support, LDPC error correction, Dynamic and Static Wear Leveling, S.M.A.R.T., NVMe 1.3 |
| Dimensions (WxDxH) | 0.9 in x 3.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | 5-year warranty with product registration |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Bytes per Sector | 512 |
| Features | InnoGrit IG5216, SLC cache, 3D NAND Technology, Global Wear Leveling, StaticDataRefresh Technology, Advanced Garbage Collection, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, NVMe Security Erase support, LDPC error correction, Dynamic and Static Wear Leveling, S.M.A.R.T., NVMe 1.3 |
| Width | 0.9 in |
| Depth | 3.1 in |
| Weight | 0.25 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years with product registration |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Power | |
| Power Consumption | 4.75 Watt (active) ¦ 0.3 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% RH |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Performance | |
| SSD Endurance | 500 TB |
| Internal Data Rate | 3300 MBps (read) / 2900 MBps (write) |
| Maximum 4KB Random Write | 288000 IOPS |
| Maximum 4KB Random Read | 336000 IOPS |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | - M.2 M key |
| Compatible Bay | M.2 2280 |
